Specialised charts

These series each answer one kind of question: how several measures compare, where a single value stands, how many drop out at each step. Radar, gauge, funnel, parallel and custom series lay themselves out in the plot area. Pictorial and effect scatter series are drawn on the chart’s axes.

Radar

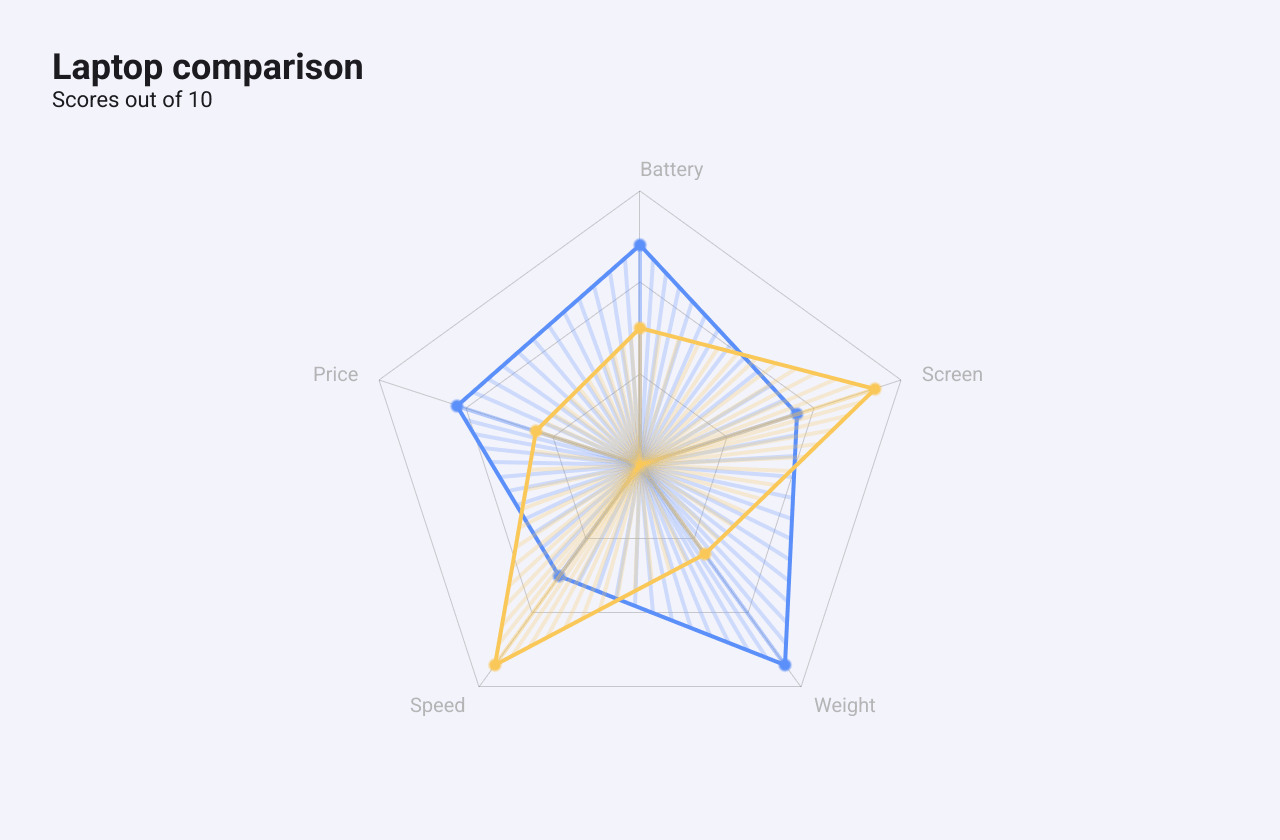

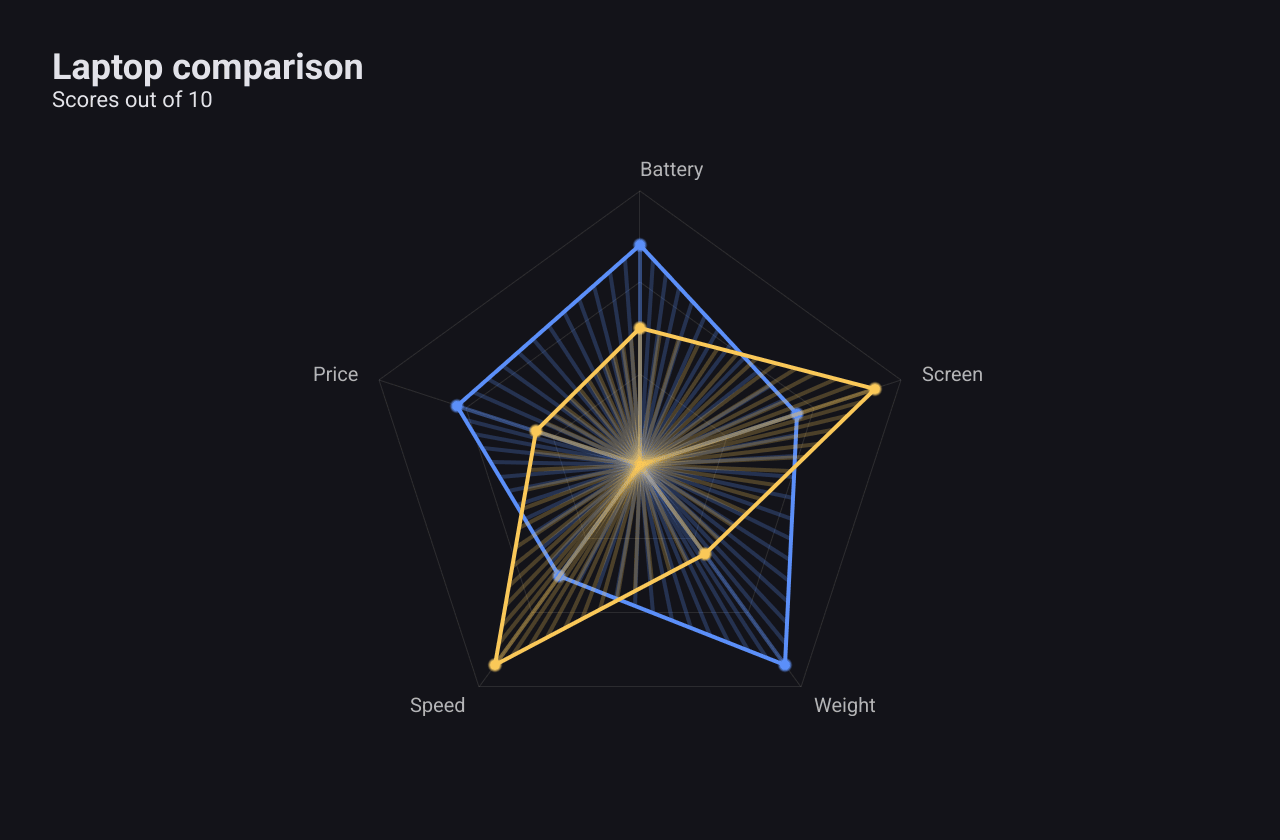

A RadarSeries puts several measures on spokes around a centre and joins each item’s values into a polygon. Use it to compare a few items across the same measures.

c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Laptop comparison", SubText: "Scores out of 10"},
	Series: []series.Series{
		&series.RadarSeries{
			SeriesName: "Laptops",
			Indicators: []series.RadarIndicator{
				{Name: "Battery", Max: 10}, {Name: "Screen", Max: 10},
				{Name: "Weight", Max: 10}, {Name: "Speed", Max: 10},
				{Name: "Price", Max: 10},
			},
			// One row per item, one value per indicator.
			Data: [][]float64{
				{8, 6, 9, 5, 7},
				{5, 9, 4, 9, 4},
			},
			ShowArea: true,
			Opacity:  0.25,
		},
	},
})

Indicators lists the spokes, each a RadarIndicator with a Name and a Max. With Max at 0 the spoke’s maximum is the largest value on it. Data has one row per item and one value per indicator; a row with fewer values than indicators is skipped. ShowArea fills the polygons, with Opacity as the fill’s opacity (default 0.3).

The fill is drawn as a fan of lines from the centre, so it looks striped rather than solid. Polygons take their colours from the built-in palette, and DataNames is not used for drawing in v1.0.0.

Gauge

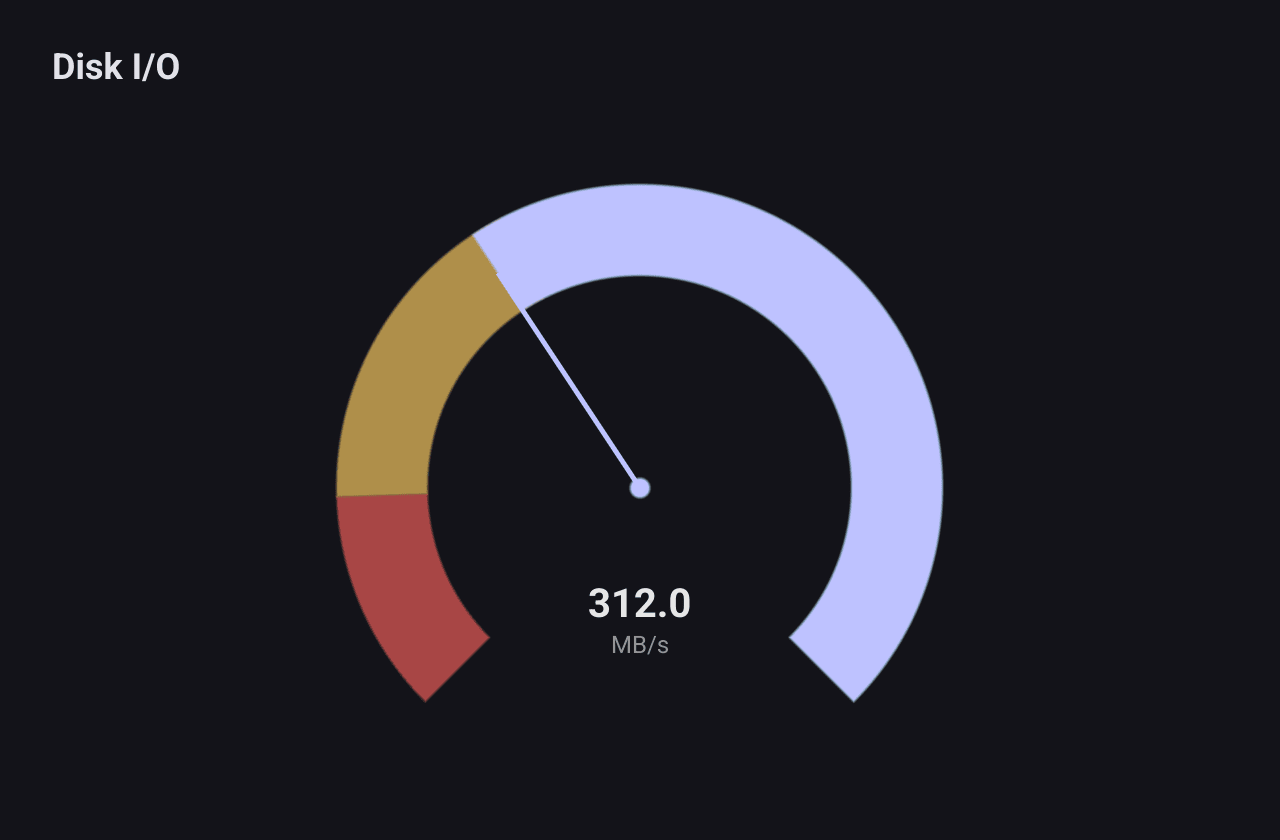

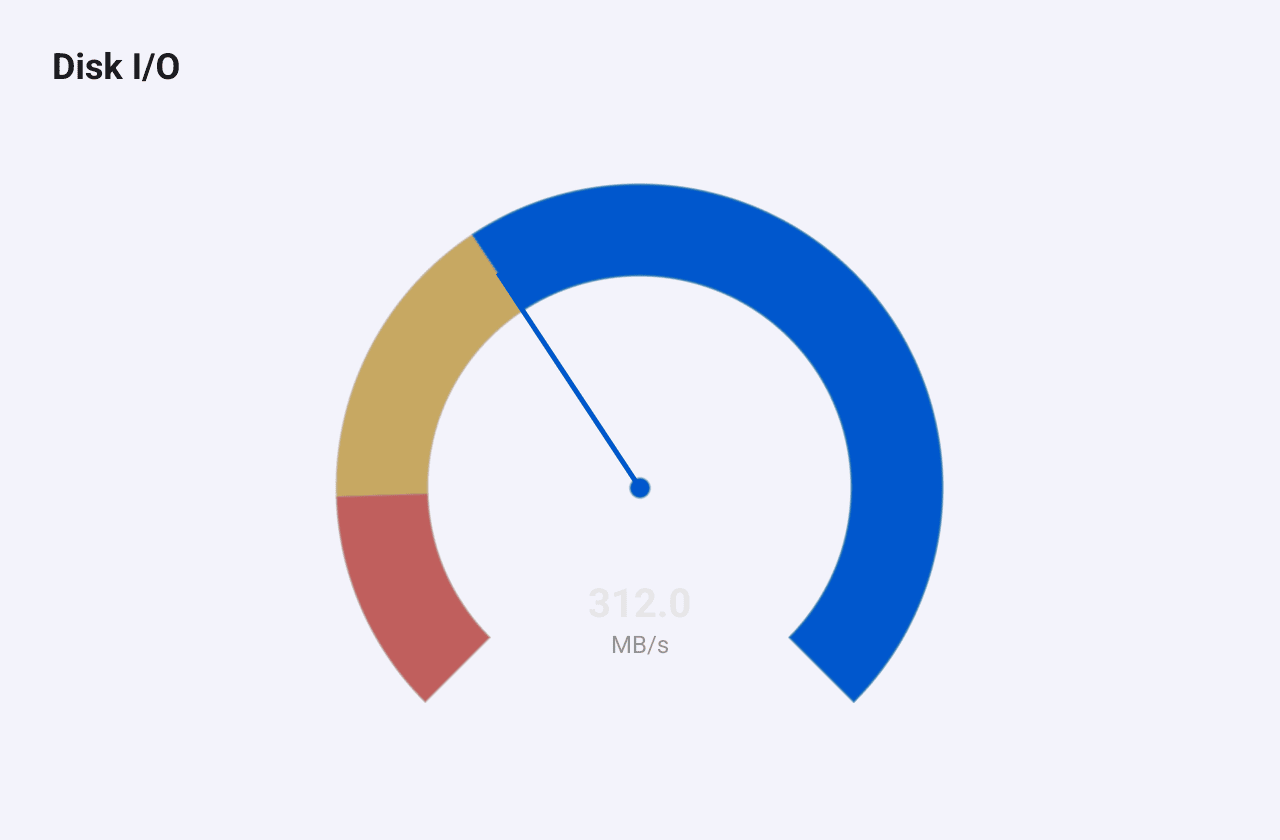

A GaugeSeries shows one value on a dial, with coloured ranges for normal, warning and critical.

c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Disk I/O"},
	Series: []series.Series{
		&series.GaugeSeries{
			SeriesName: "MB/s",
			Value:      312,
			Min:        0,
			Max:        500,
			ShowValue:  true,
			// Minimum at the bottom right, maximum at the bottom left,
			// with the gap at the bottom. Values grow counter-clockwise.
			StartAngle: 135,
			EndAngle:   -135,
			Sectors: []series.GaugeSector{
				{Min: 0, Max: 300, Color: color.NRGBA{R: 38, G: 186, B: 121, A: 160}},
				{Min: 300, Max: 420, Color: color.NRGBA{R: 250, G: 200, B: 88, A: 160}},
				{Min: 420, Max: 500, Color: color.NRGBA{R: 239, G: 83, B: 80, A: 160}},
			},
		},
	},
})

The main fields:

Value is the reading. Min and Max set the scale; when Max is not above Min, the scale runs to 100.
Sectors colour ranges of the scale, each a GaugeSector with Min, Max and Color.
ShowValue writes the value, with the series name under it, in the middle.
Radius is a fraction of the available space (default 0.85).
StartAngle and EndAngle, in degrees with 0 at the top, set where the scale starts and ends.

The gauge does not draw as its documentation describes in v1.0.0. Values always advance counter-clockwise from StartAngle. With the default angles (225 and -45) the scale starts at the bottom left and runs through the bottom, the right and the top, leaving the gap on the left side. The example sets StartAngle: 135, EndAngle: -135, which puts the gap at the bottom, with the minimum at the bottom right. The value arc is drawn over the sectors, so a sector below the current value is hidden. The value text is a fixed light colour, which is faint in the light theme.

Funnel

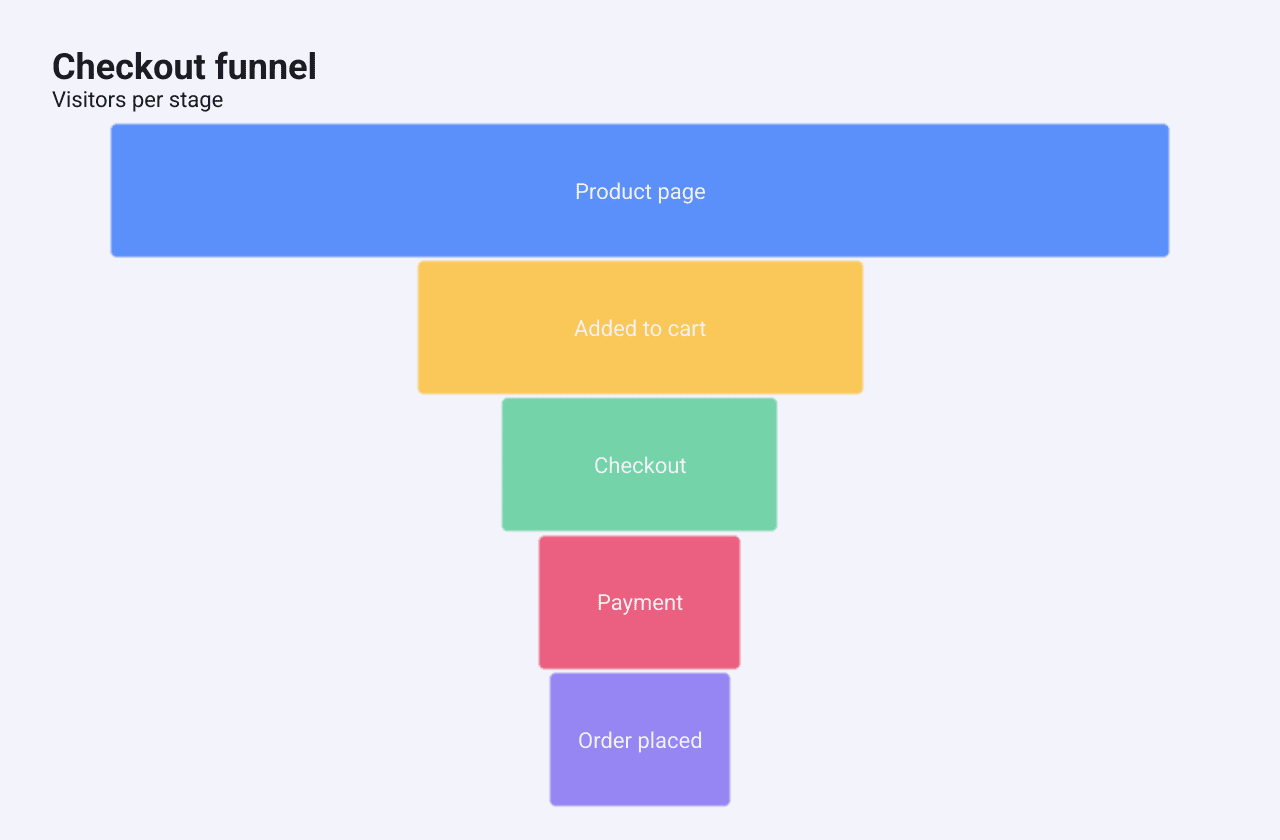

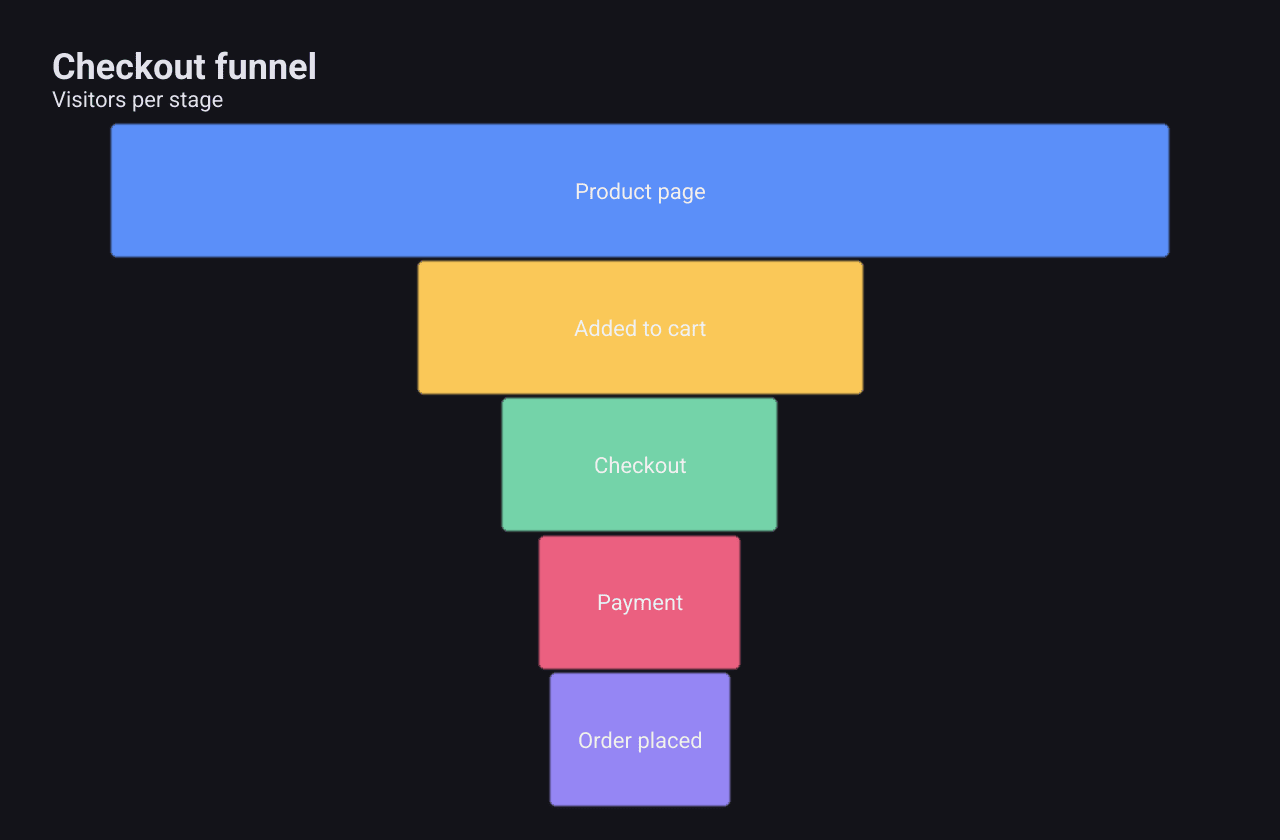

A FunnelSeries shows how many remain at each step of a process, such as a checkout.

c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Checkout funnel", SubText: "Visitors per stage"},
	Series: []series.Series{
		&series.FunnelSeries{
			SeriesName: "Checkout",
			// Stages are drawn top to bottom in this order.
			Data: []series.FunnelData{
				{Name: "Product page", Value: 10000},
				{Name: "Added to cart", Value: 4200},
				{Name: "Checkout", Value: 2600},
				{Name: "Payment", Value: 1900},
				{Name: "Order placed", Value: 1700},
			},
		},
	},
})

Each FunnelData stage has a Name, a Value and an optional Color. Stages are centred bars whose width is proportional to their value. All stages are the same height, unless DynamicHeight is set, which makes each stage’s height proportional to its value.

Stages are drawn top to bottom in the order you give them. Sort is declared but has no effect in v1.0.0, so put the stages in order yourself.

Parallel coordinates

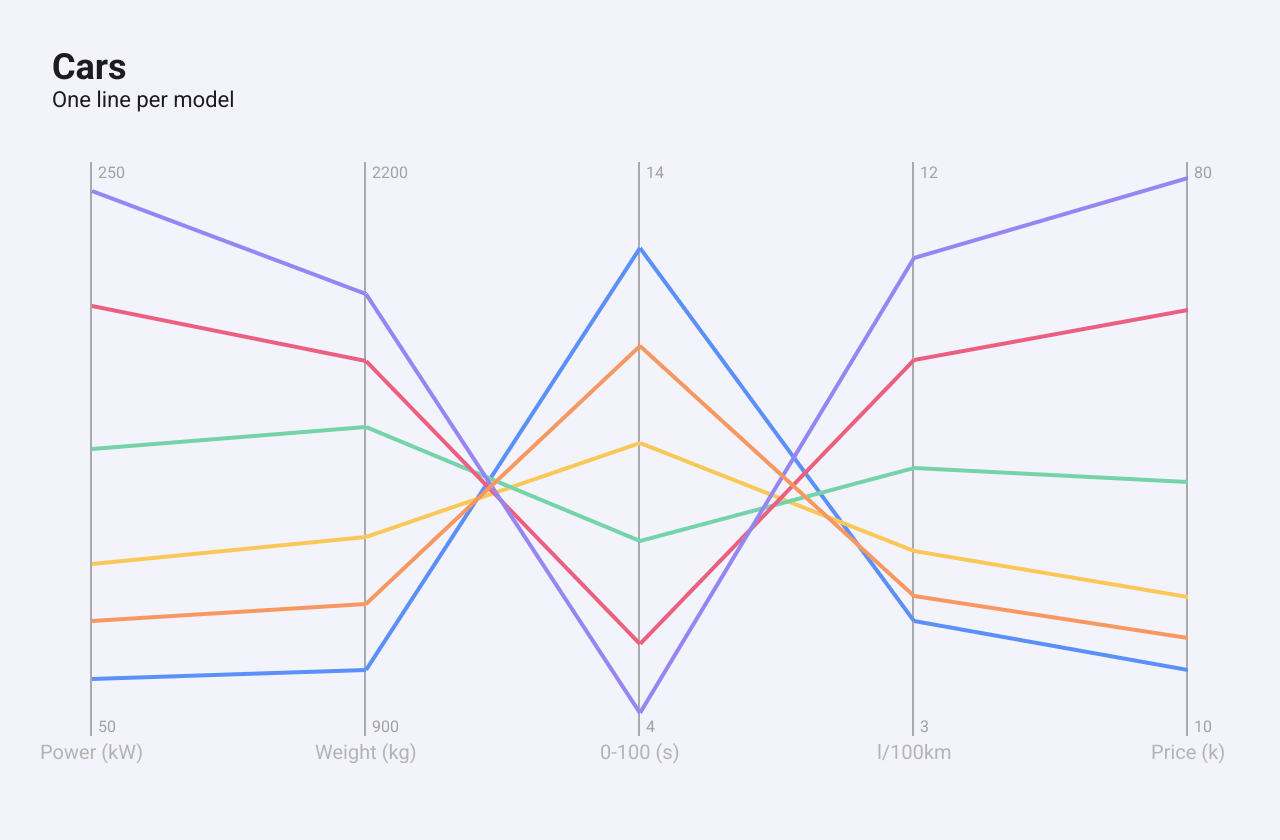

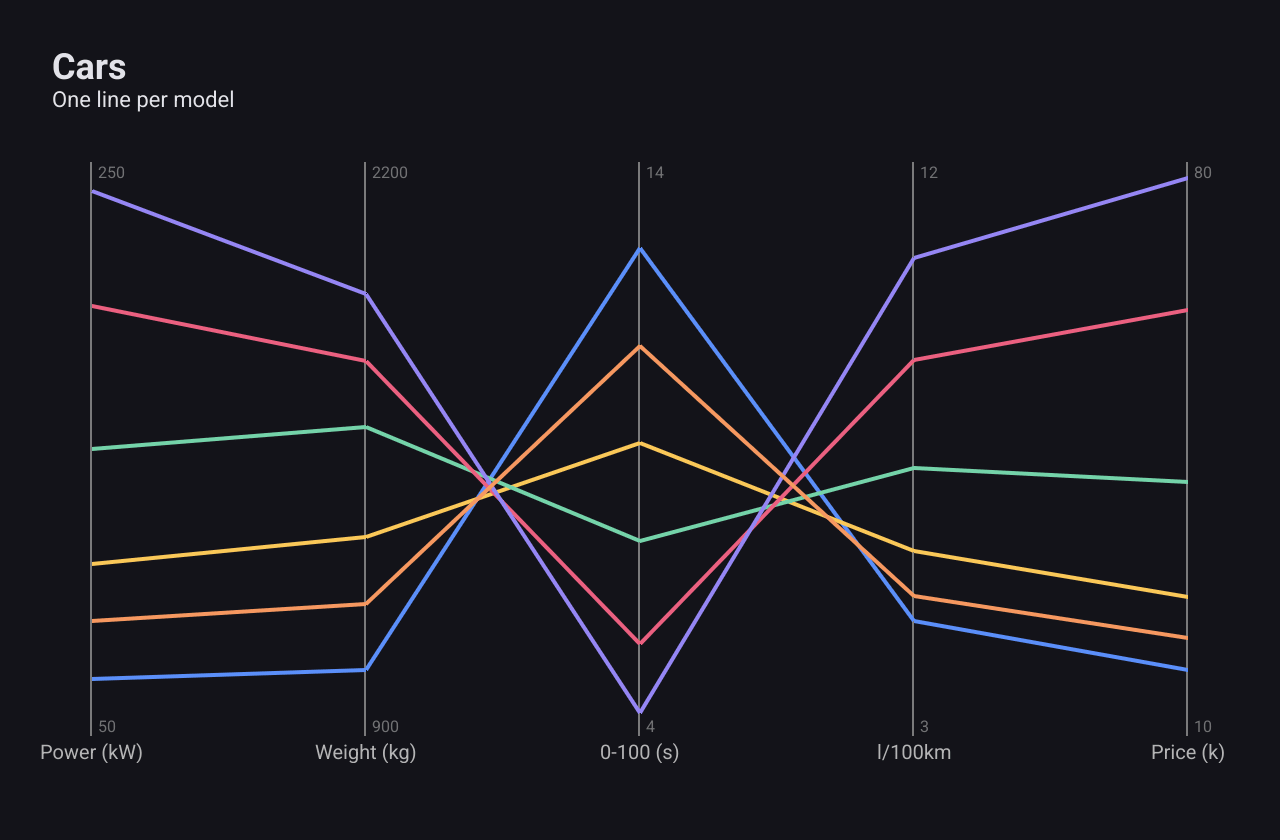

A ParallelSeries draws one vertical axis per measure and one line per item across them. Use it to spot patterns across many measures, such as heavier cars being slower and more expensive.

c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Cars", SubText: "One line per model"},
	Series: []series.Series{
		&series.ParallelSeries{
			SeriesName: "Cars",
			Axes: []series.ParallelAxis{
				{Name: "Power (kW)", Min: 50, Max: 250},
				{Name: "Weight (kg)", Min: 900, Max: 2200},
				{Name: "0-100 (s)", Min: 4, Max: 14},
				{Name: "l/100km", Min: 3, Max: 12},
				{Name: "Price (k)", Min: 10, Max: 80},
			},
			// Data[line][axis]
			Data: [][]float64{
				{70, 1050, 12.5, 4.8, 18},
				{110, 1350, 9.1, 5.9, 27},
				{150, 1600, 7.4, 7.2, 41},
				{200, 1750, 5.6, 8.9, 62},
				{240, 1900, 4.4, 10.5, 78},
				{90, 1200, 10.8, 5.2, 22},
			},
			LineWidth: 2,
		},
	},
})

Axes lists the ParallelAxises, each with a Name, Min and Max. When both Min and Max are 0, the range comes from the data. Data holds one row per line and one value per axis. LineWidth defaults to 1.5. Each line takes the next colour from the built-in palette.

Pictorial bar

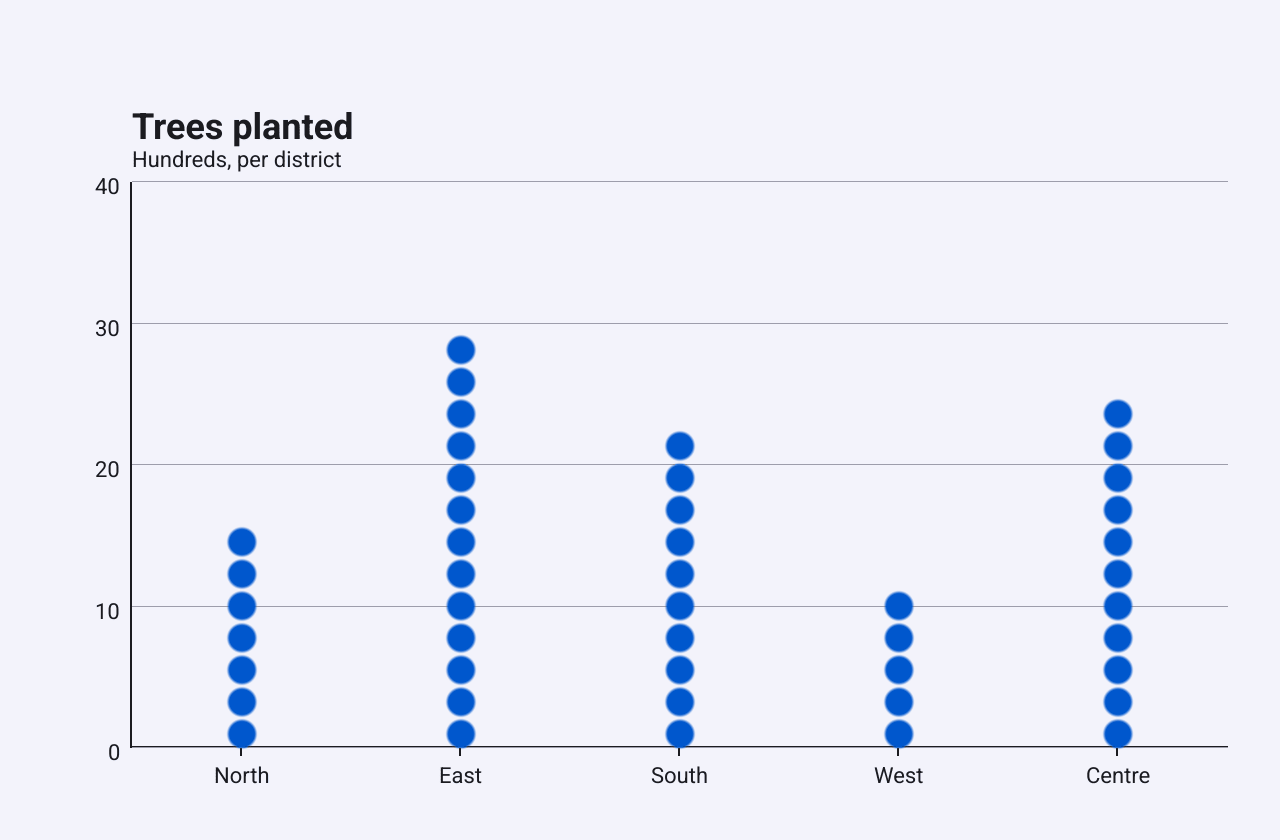

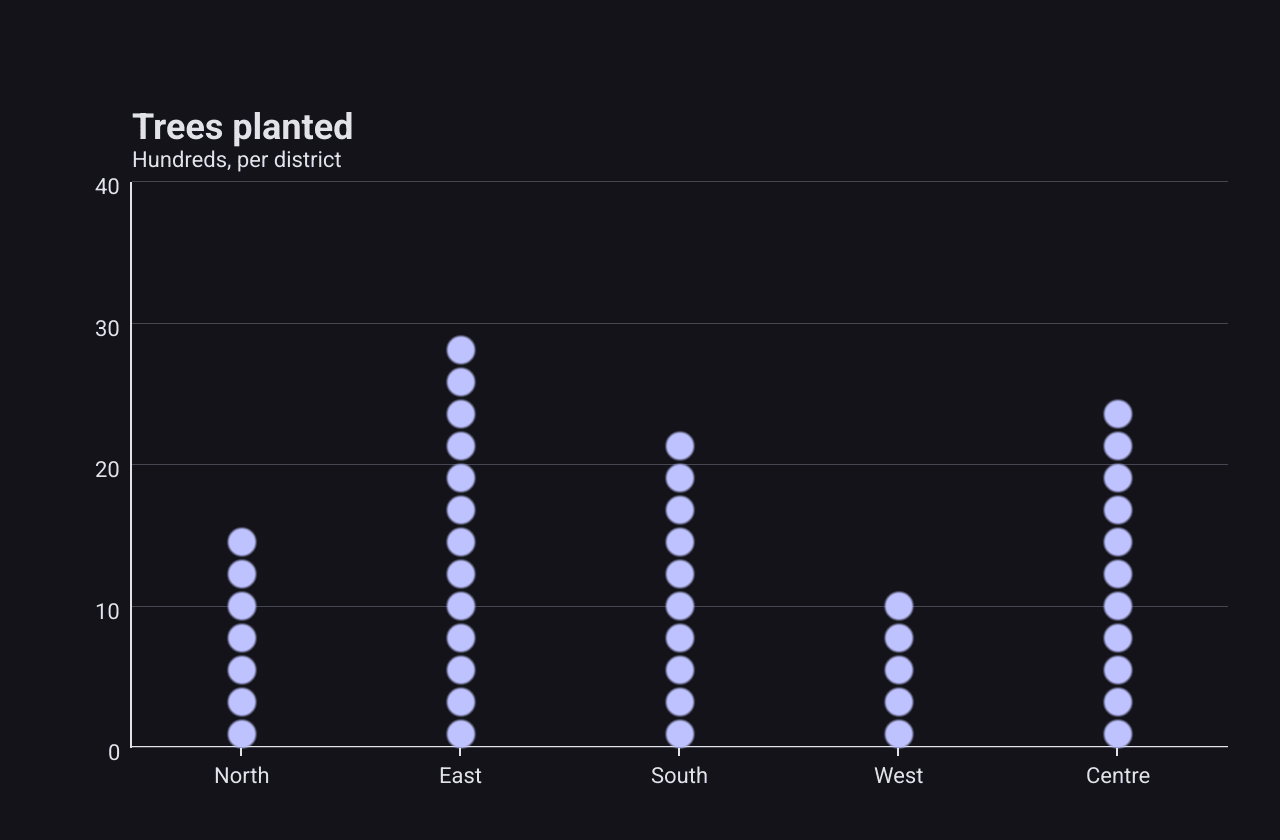

A PictorialSeries is a bar chart whose bars are stacks of symbols. It suits counts of things, where a column of items reads better than a solid bar.

c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Trees planted", SubText: "Hundreds, per district"},
	XAxis: []axis.Config{{Type: axis.TypeCategory, Data: []string{"North", "East", "South", "West", "Centre"}}},
	YAxis: []axis.Config{{Type: axis.TypeValue}},
	Series: []series.Series{
		&series.PictorialSeries{
			SeriesName: "Trees",
			Data:       []float64{18, 31, 24, 12, 27},
			Symbol:     series.SymbolCircle, // a column of circles
			SymbolSize: 14,
		},
	},
})

SymbolSize is the size of one symbol (default 12), and the number of symbols follows the bar’s height. With Symbol: series.SymbolCircle the bar is a column of circles; any other symbol draws a column of rounded bars instead. Color overrides the palette colour.

Effect scatter

An EffectScatterSeries is a scatter series whose points have a ring around them. Use it to make a few points stand out, here alerts over ordinary readings.

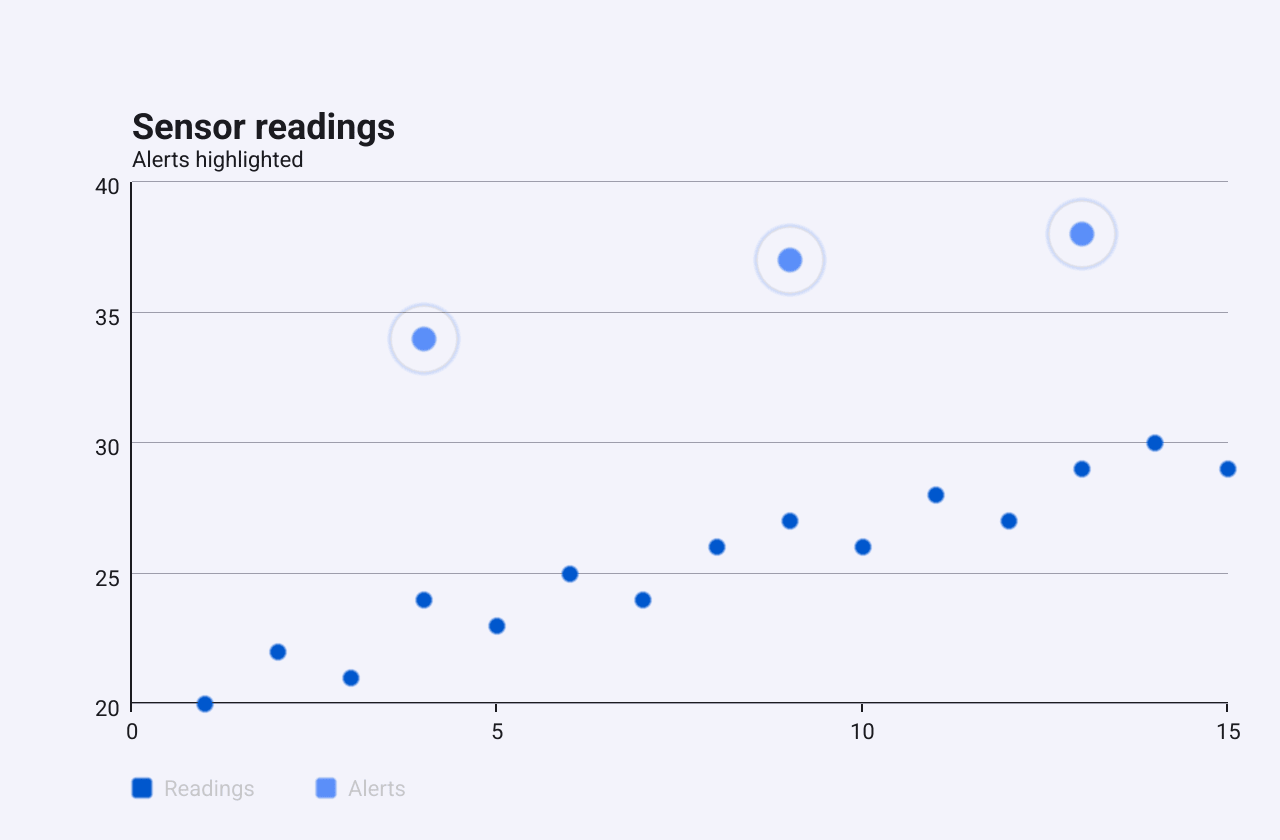

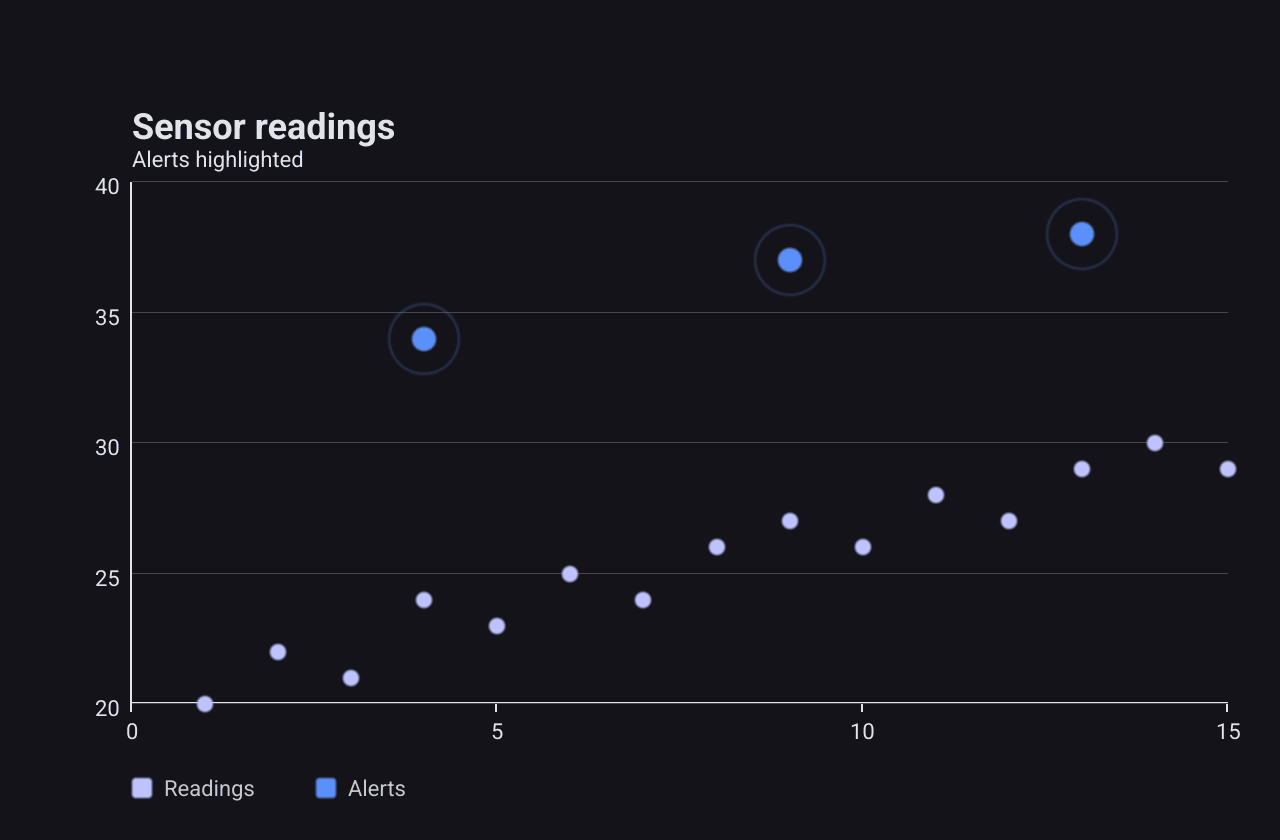

A scatter of sensor readings with three alert points above them, each with a faint ring around it

c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Sensor readings", SubText: "Alerts highlighted"},
	XAxis: []axis.Config{{Type: axis.TypeValue}},
	YAxis: []axis.Config{{Type: axis.TypeValue}},
	Series: []series.Series{
		&series.ScatterSeries{
			SeriesName: "Readings",
			Data: []float64{
				1, 20, 2, 22, 3, 21, 4, 24, 5, 23, 6, 25, 7, 24, 8, 26,
				9, 27, 10, 26, 11, 28, 12, 27, 13, 29, 14, 30, 15, 29,
			},
			Symbol: series.SymbolCircle,
		},
		&series.EffectScatterSeries{
			SeriesName:  "Alerts",
			Data:        []float64{4, 34, 9, 37, 13, 38}, // x0, y0, x1, y1, ...
			SymbolSize:  12,
			RippleScale: 3,
		},
	},
})

Data stores x, y pairs flat, like a scatter series. SymbolSize sets the point size (default 8), and RippleScale the size of the ring relative to the point (default 2.5). The ring grows during the chart’s entrance animation and then stays still: in v1.0.0 it does not pulse.

Custom

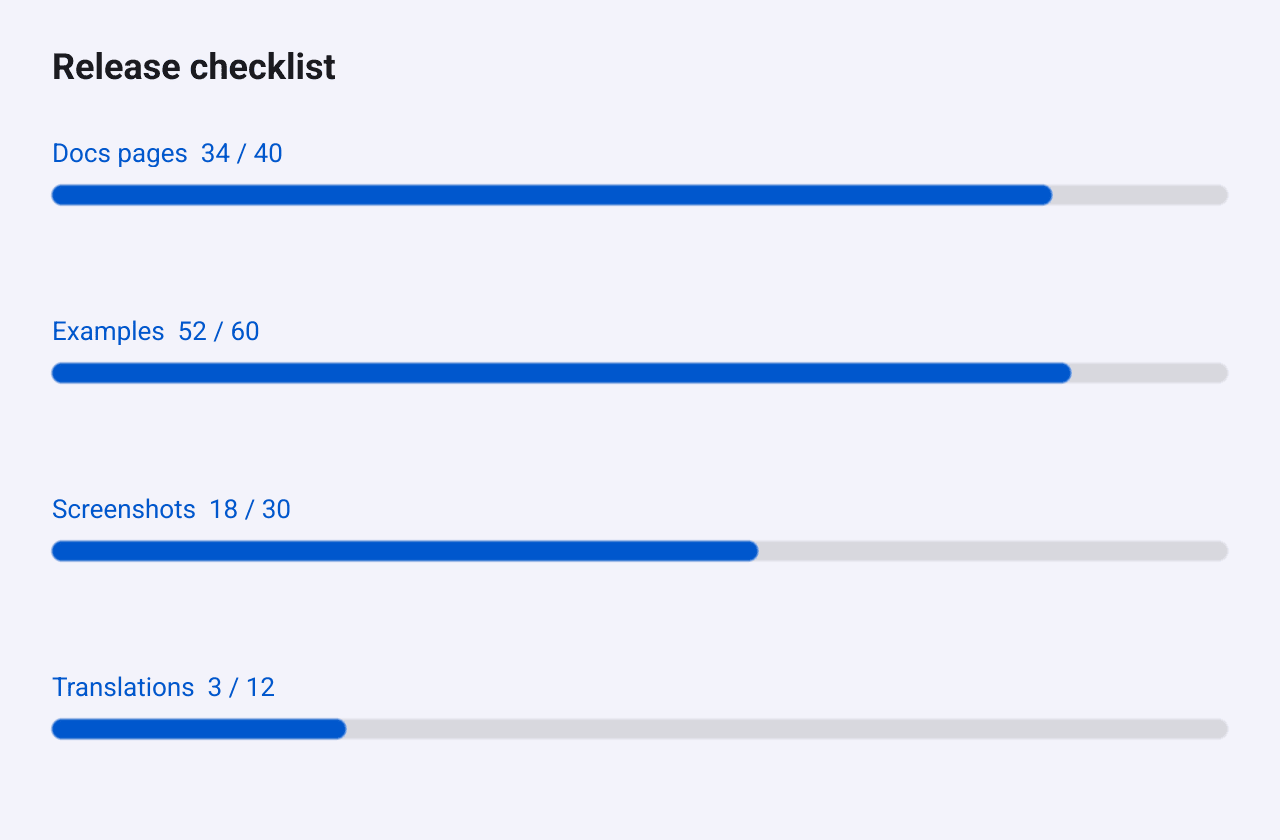

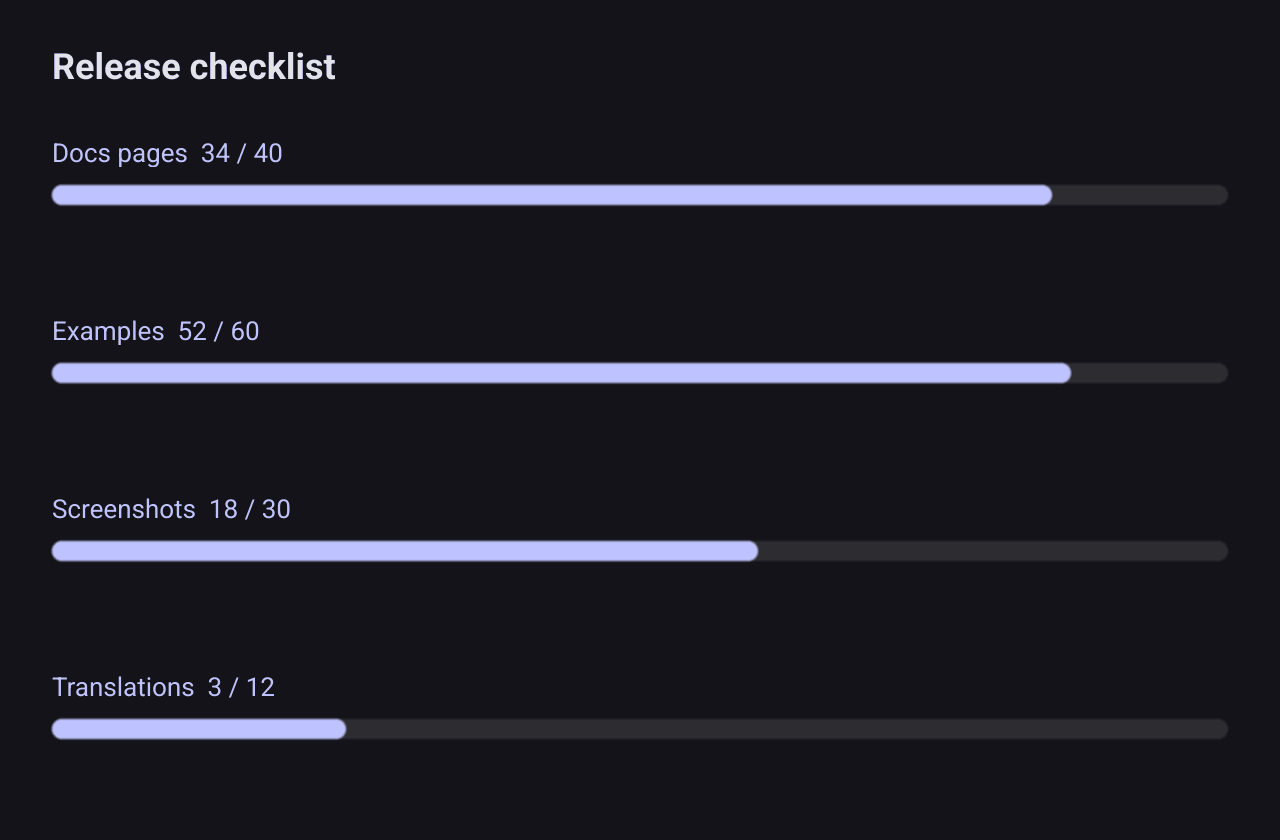

A CustomSeries hands drawing to your own function. Use it for a chart the other types do not cover, while keeping the chart’s title, background and theme.

progress := func(ctx series.RenderContext) []core.CanvasObject {
	vp := ctx.Viewport // the plot area, in pixels
	rowH := vp.H / float32(len(goals))
	track := color.NRGBA{R: 128, G: 128, B: 128, A: 60}

	var objs []core.CanvasObject
	for i, g := range goals {
		y := vp.Y + float32(i)*rowH + rowH/2

		label := canvas.NewText(fmt.Sprintf("%s  %.0f / %.0f", g.name, g.done, g.total), ctx.Color)
		label.TextSize = 13
		label.Move(geo.NewPos(vp.X, y-24))
		objs = append(objs, label)

		bg := canvas.NewRectangle(track)
		bg.CornerRadius = 5
		bg.Move(geo.NewPos(vp.X, y))
		bg.Resize(geo.NewSize(vp.W, 10))

		bar := canvas.NewRectangle(ctx.Color) // the series colour from the palette
		bar.CornerRadius = 5
		bar.Move(geo.NewPos(vp.X, y))
		bar.Resize(geo.NewSize(vp.W*float32(g.done/g.total), 10))
		objs = append(objs, bg, bar)
	}
	return objs
}

c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Release checklist"},
	Series: []series.Series{
		&series.CustomSeries{SeriesName: "Progress", RenderFunc: progress},
	},
})

RenderFunc receives a RenderContext and returns the canvas objects to draw. The fields you will use most:

Viewport is the plot area in pixels. Position everything inside it.
Color is the series’ colour from the palette.
Animate and AnimProgress (0 to 1) tell you when the entrance animation is running, so you can animate too.

A custom series is laid out like a pie or a radar: the chart draws no axes for it, and Coord maps data values to the same pixel values.
