Hierarchies and flows

Hierarchies and flows

These series show structure rather than values on an axis: a hierarchy, the size of its parts, or flows between things. They ignore the chart’s axes and lay themselves out in the plot area.

Nodes take their colours from a fixed built-in palette unless you set a node’s own Color. The tree, treemap, sankey and graph series draw their labels in a fixed light colour, so the labels are easy to read in the dark theme and faint in the light theme. The sunburst draws its labels in dark grey.

Tree

A TreeSeries draws a hierarchy as nodes joined by lines, such as an organisation chart or a file tree.

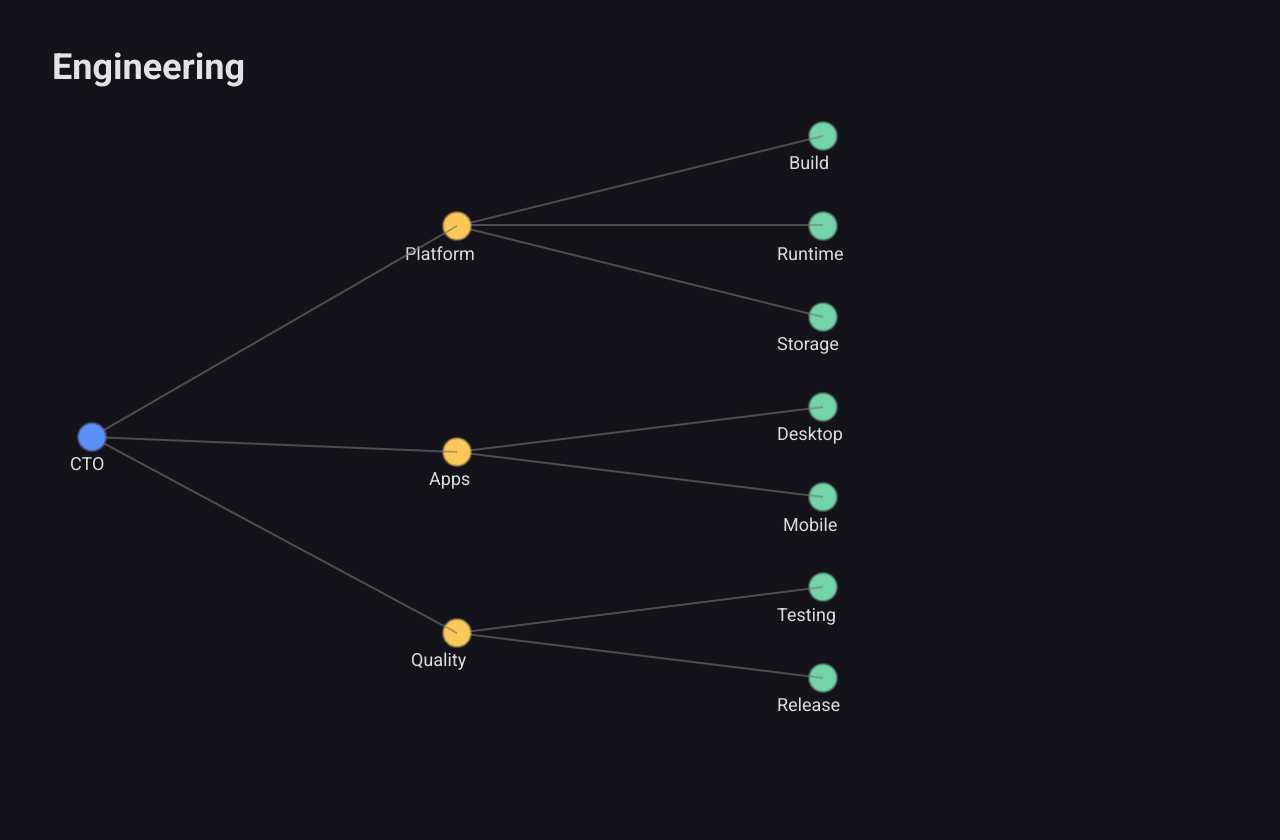

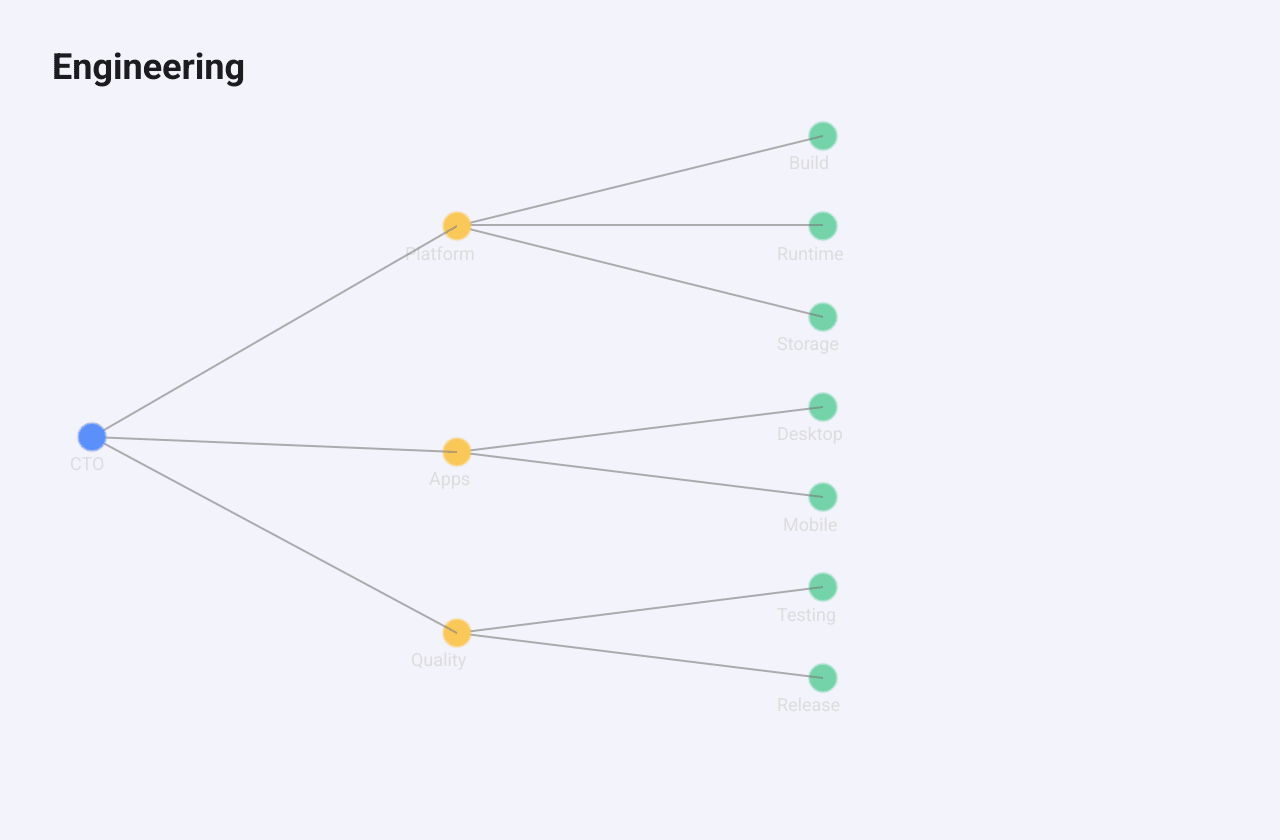

A tree drawn left to right: a root node, three team nodes and seven leaf nodes A tree drawn left to right: a root node, three team nodes and seven leaf nodes
c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Engineering"},
	Series: []series.Series{
		&series.TreeSeries{
			SeriesName: "Org",
			Orient:     "LR", // left to right; the default "TB" is top to bottom
			NodeSize:   7,
			Data: series.TreeNode{Name: "CTO", Children: []series.TreeNode{
				{Name: "Platform", Children: []series.TreeNode{
					{Name: "Build"}, {Name: "Runtime"}, {Name: "Storage"},
				}},
				{Name: "Apps", Children: []series.TreeNode{
					{Name: "Desktop"}, {Name: "Mobile"},
				}},
				{Name: "Quality", Children: []series.TreeNode{
					{Name: "Testing"}, {Name: "Release"},
				}},
			}},
		},
	},
})

Data is the root TreeNode, and each node lists its Children. Orient is "TB" for top to bottom (the default) or "LR" for left to right. NodeSize is the radius of each dot (default 6). Nodes are coloured by depth.

Leaves are spaced evenly and each parent is centred on its children. The deepest level is placed short of the far edge, which leaves empty space on that side, as in the screenshot. TreeNode.Value is not used for drawing.

Treemap

A TreemapSeries divides a rectangle into nested rectangles sized by value. Use it to see what takes up the space, such as disk usage.

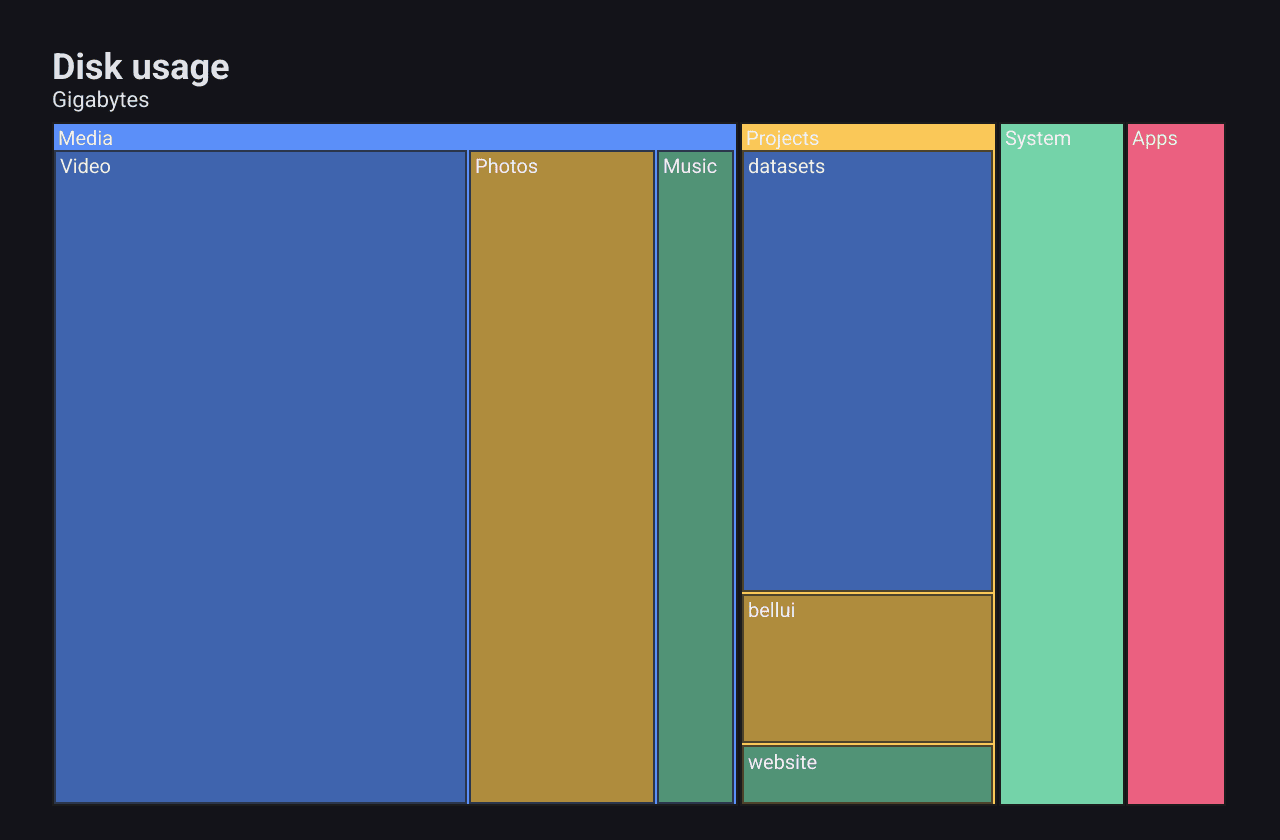

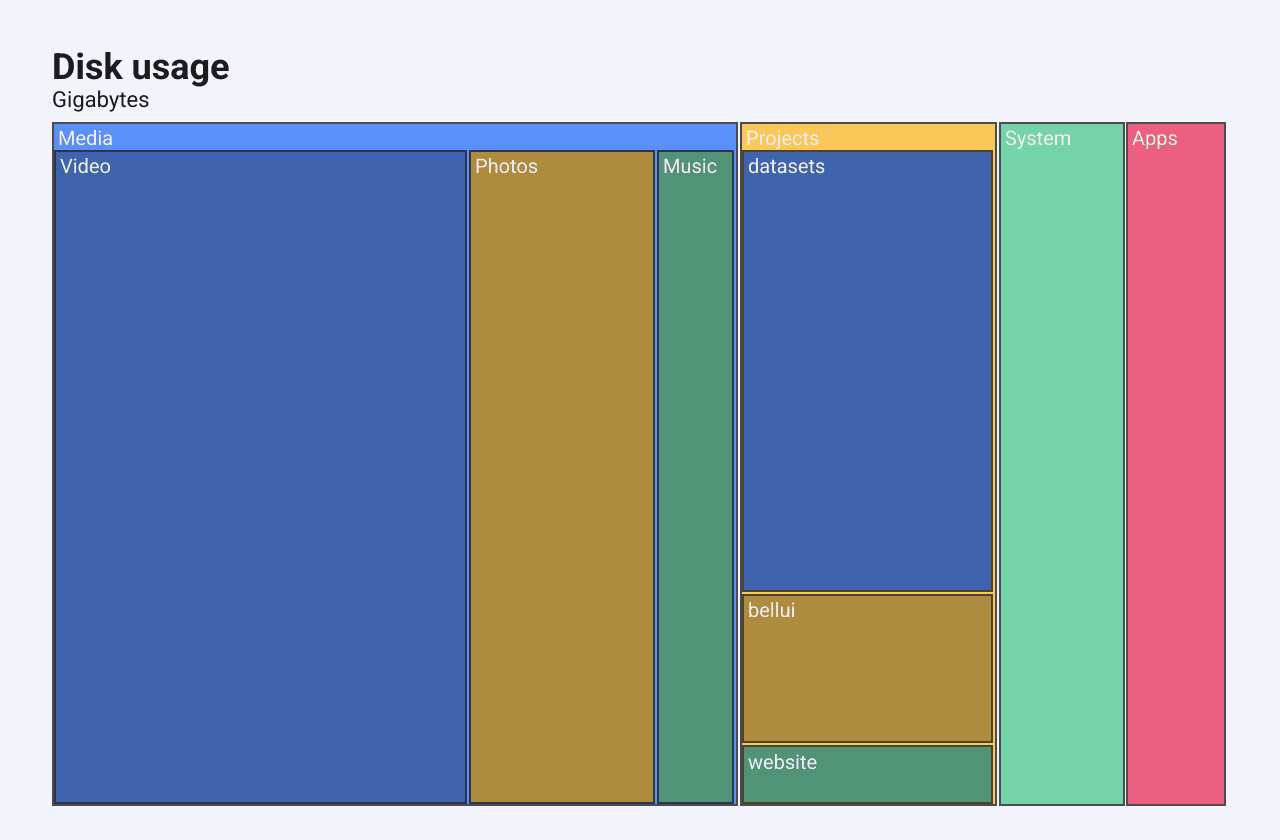

A treemap of disk usage: Media, Projects, System and Apps, with Media and Projects split into their children A treemap of disk usage: Media, Projects, System and Apps, with Media and Projects split into their children
c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Disk usage", SubText: "Gigabytes"},
	Series: []series.Series{
		&series.TreemapSeries{
			SeriesName: "Disk",
			Data: []series.TreemapNode{
				{Name: "Media", Children: []series.TreemapNode{
					{Name: "Video", Value: 210}, {Name: "Photos", Value: 95}, {Name: "Music", Value: 40},
				}},
				{Name: "Projects", Children: []series.TreemapNode{
					{Name: "website", Value: 12}, {Name: "bellui", Value: 30}, {Name: "datasets", Value: 88},
				}},
				{Name: "System", Value: 64},
				{Name: "Apps", Value: 51},
			},
		},
	},
})

Data lists the top-level TreemapNodes. A leaf’s size is its Value. A node with Children is the sum of its children, and its own Value is ignored. Siblings are sorted largest first and placed side by side along the longer side of their parent’s rectangle. A rectangle’s name is drawn when there is room for it.

Sunburst

A SunburstSeries shows the same kind of hierarchy as rings: the top level in the middle, each deeper level one ring further out.

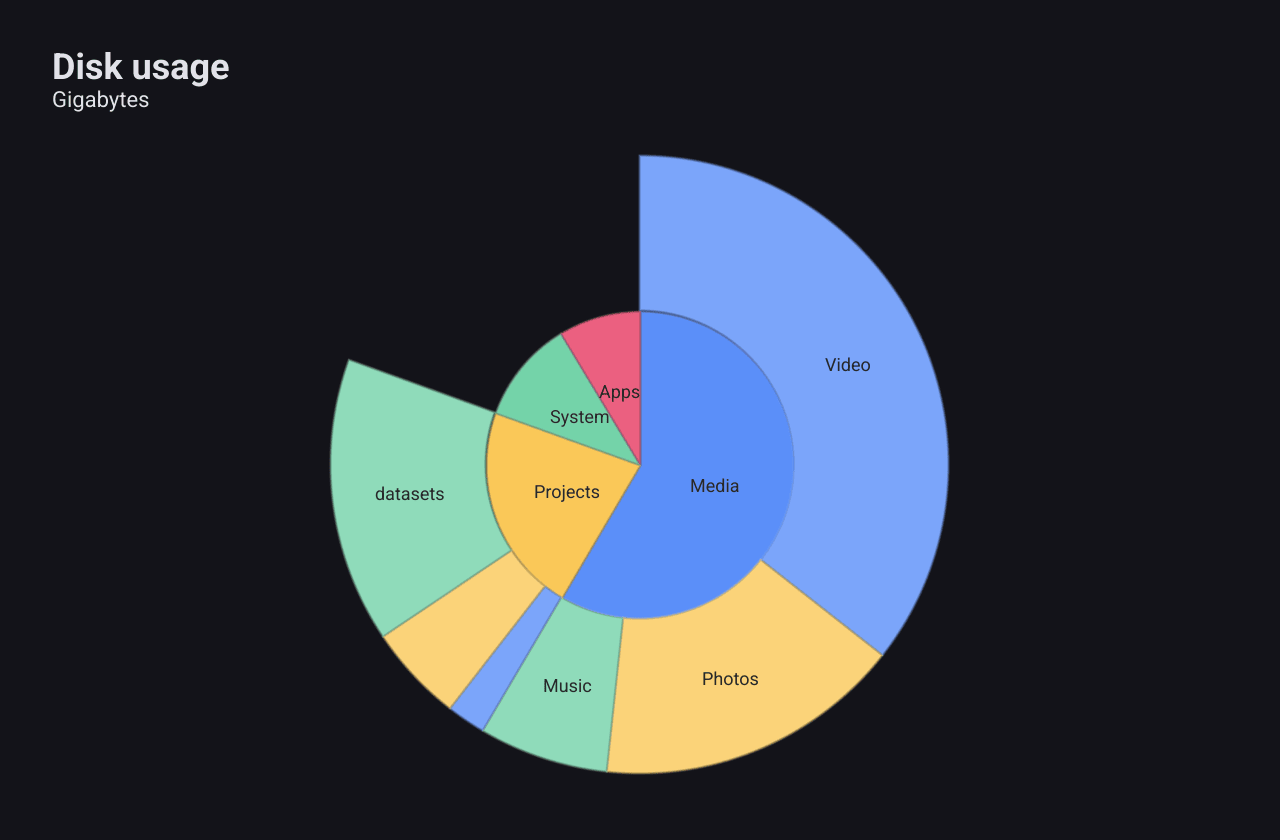

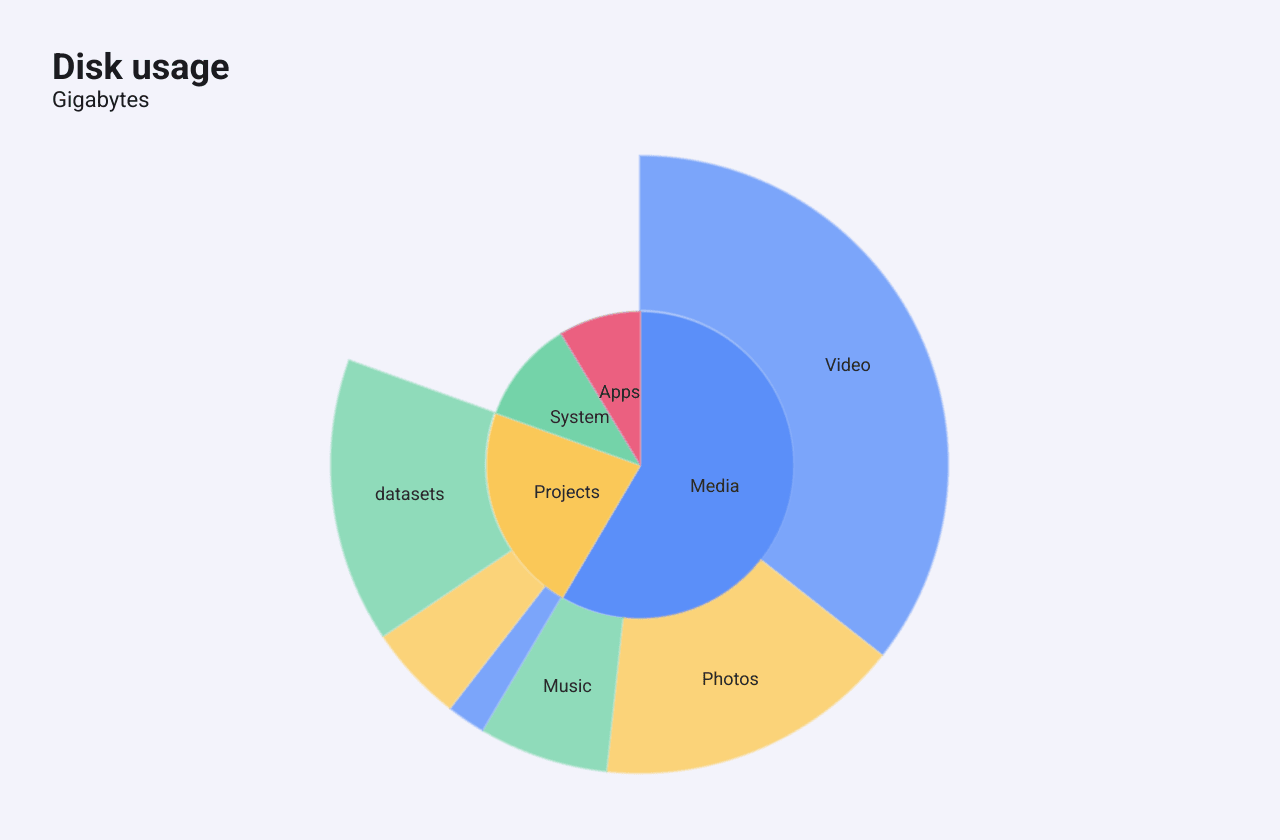

A sunburst of disk usage: an inner ring of four folders and an outer ring with the contents of Media and Projects A sunburst of disk usage: an inner ring of four folders and an outer ring with the contents of Media and Projects
c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Disk usage", SubText: "Gigabytes"},
	Series: []series.Series{
		&series.SunburstSeries{
			SeriesName: "Disk",
			Data: []series.SunburstNode{
				{Name: "Media", Children: []series.SunburstNode{
					{Name: "Video", Value: 210}, {Name: "Photos", Value: 95}, {Name: "Music", Value: 40},
				}},
				{Name: "Projects", Children: []series.SunburstNode{
					{Name: "website", Value: 12}, {Name: "bellui", Value: 30}, {Name: "datasets", Value: 88},
				}},
				{Name: "System", Value: 64},
				{Name: "Apps", Value: 51},
			},
		},
	},
})

SunburstNode works like the treemap’s node: a leaf has a Value, and a parent is the sum of its children. Each segment spans an angle in proportion to its value. Each ring colours its segments from the palette in order, lighter in the outer rings. A segment gets a label only when it spans more than 20 degrees.

Sankey

A SankeySeries is meant to show quantities flowing from sources to targets, with the width of each link proportional to its value.

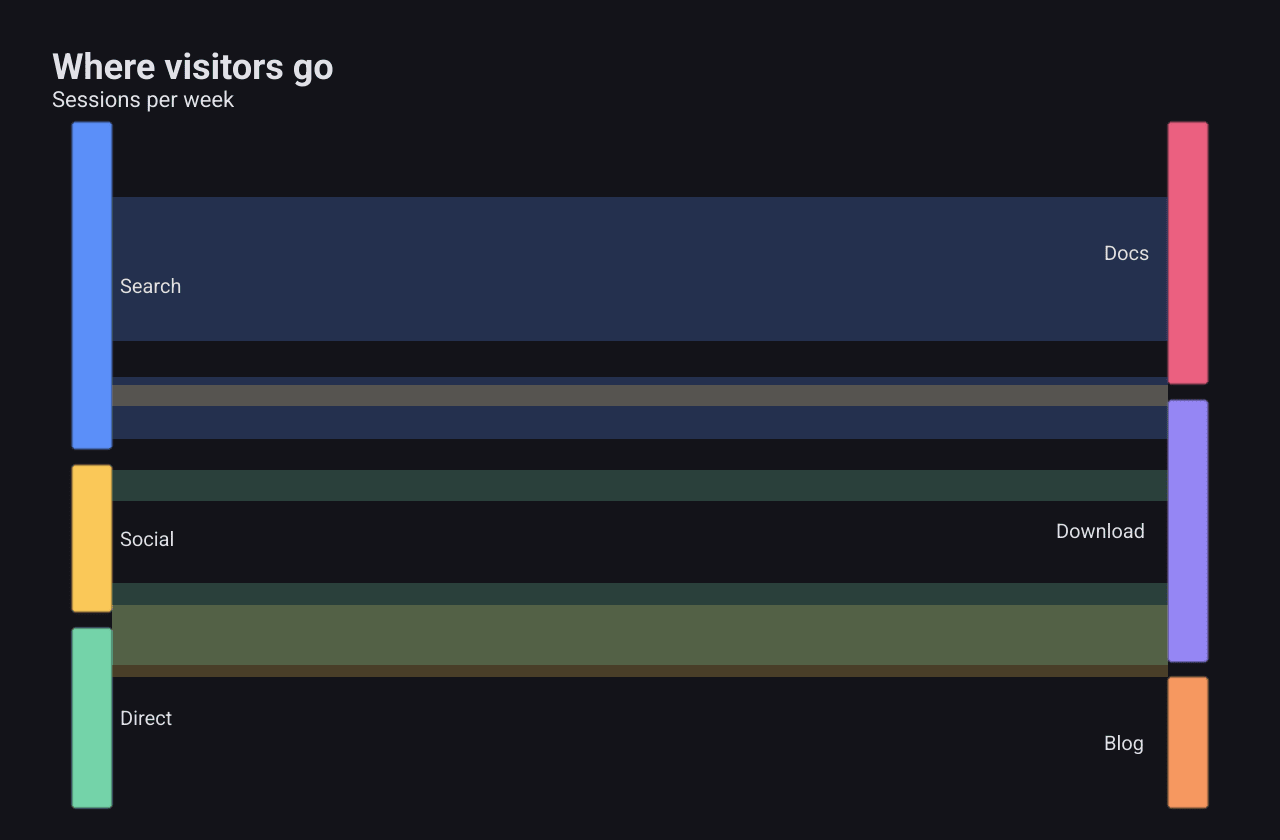

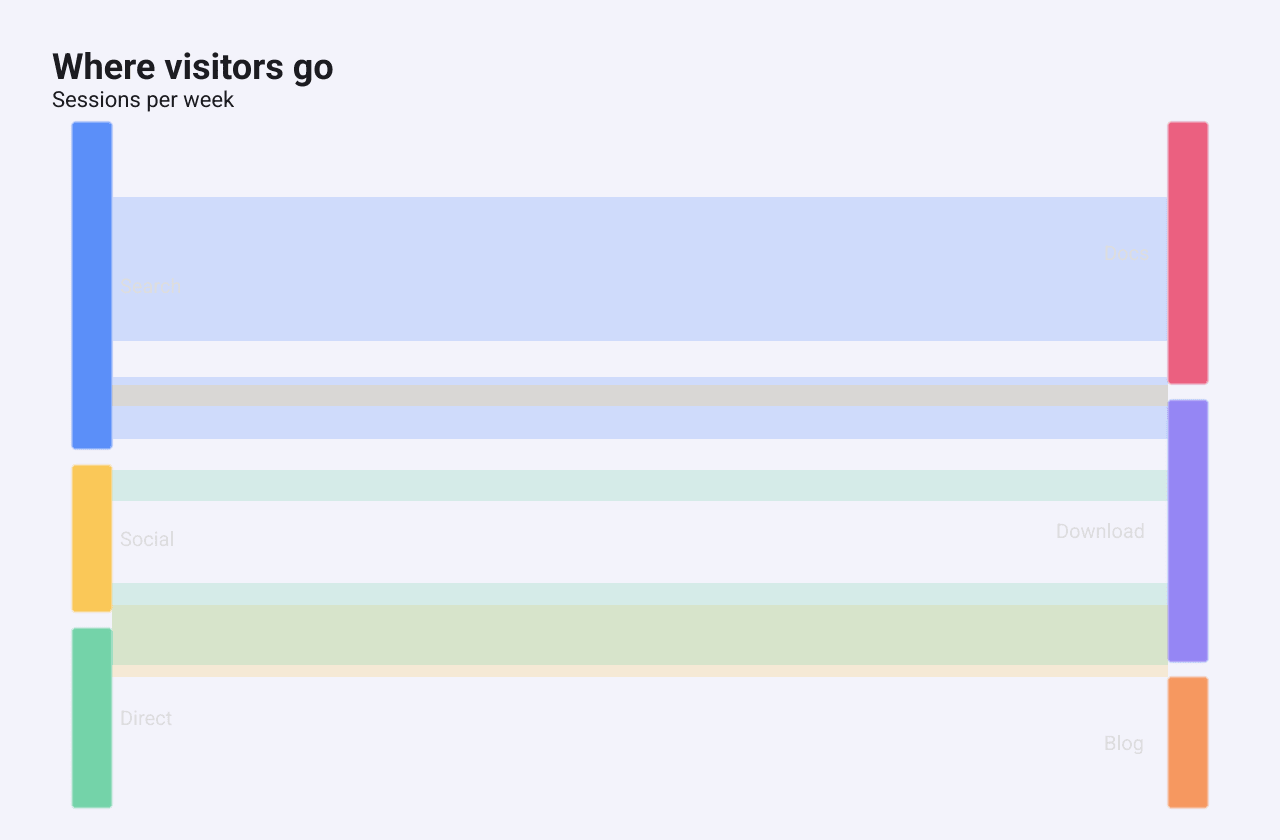

A sankey diagram with three sources on the left and three targets on the right; the links are straight horizontal bands that do not meet the nodes they join A sankey diagram with three sources on the left and three targets on the right; the links are straight horizontal bands that do not meet the nodes they join
c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Where visitors go", SubText: "Sessions per week"},
	Series: []series.Series{
		&series.SankeySeries{
			SeriesName: "Traffic",
			Nodes: []series.SankeyNode{
				{Name: "Search"}, {Name: "Social"}, {Name: "Direct"}, // 0-2: sources
				{Name: "Docs"}, {Name: "Download"}, {Name: "Blog"}, // 3-5: targets
			},
			Links: []series.SankeyLink{
				{Source: 0, Target: 3, Value: 420},
				{Source: 0, Target: 4, Value: 180},
				{Source: 1, Target: 5, Value: 210},
				{Source: 1, Target: 3, Value: 60},
				{Source: 2, Target: 4, Value: 240},
				{Source: 2, Target: 3, Value: 90},
			},
		},
	},
})

Nodes lists the SankeyNodes by index, and each SankeyLink joins a Source index to a Target index with a Value.

The sankey diagram does not render correctly in v1.0.0. It has only two columns: nodes that are only sources on the left, every other node on the right, so a flow with intermediate steps cannot be shown. Each link is drawn as a straight horizontal band at the height halfway between its two nodes, so a link between nodes at different heights does not meet either of them, as the screenshot shows. Until this is fixed, consider a graph for flows.

Graph

A GraphSeries draws nodes joined by edges, for networks such as services and their dependencies. For graphs the user edits, see the Graphs extension instead.

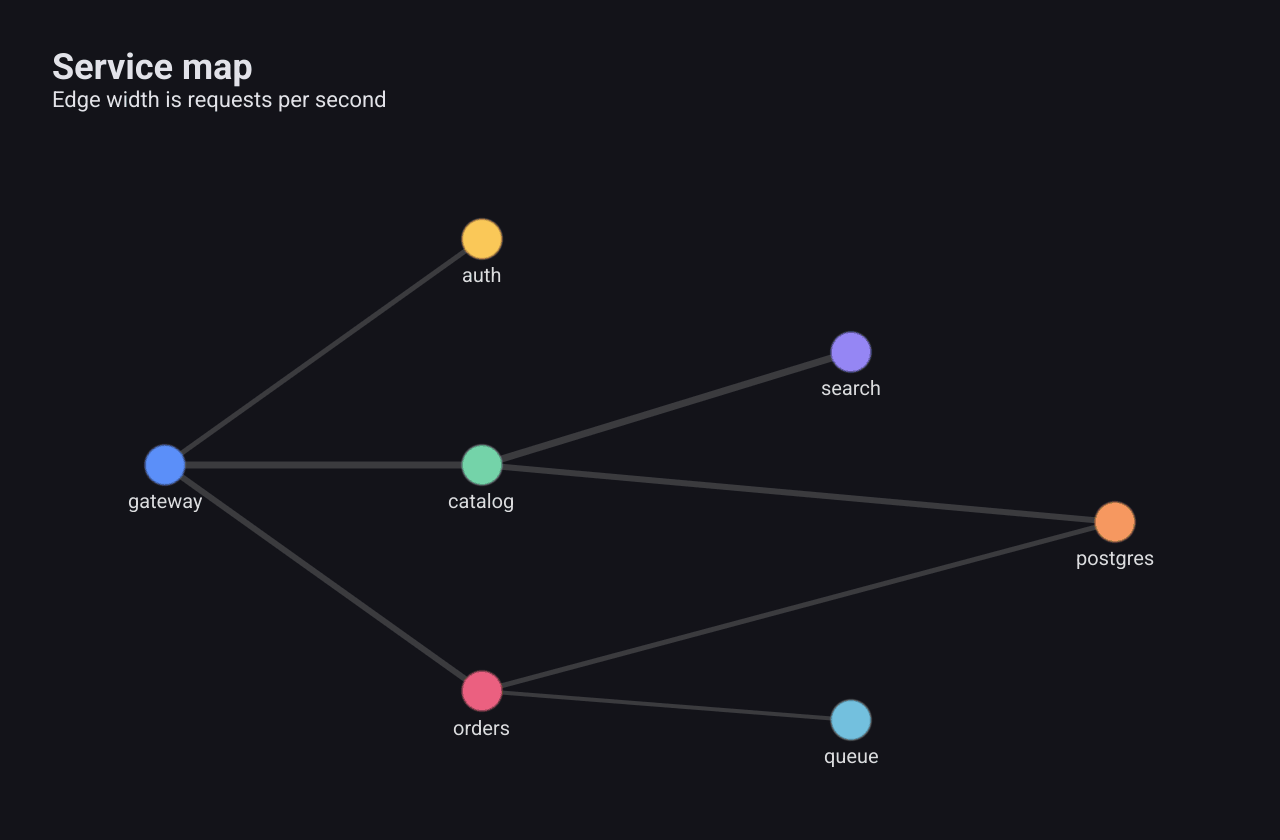

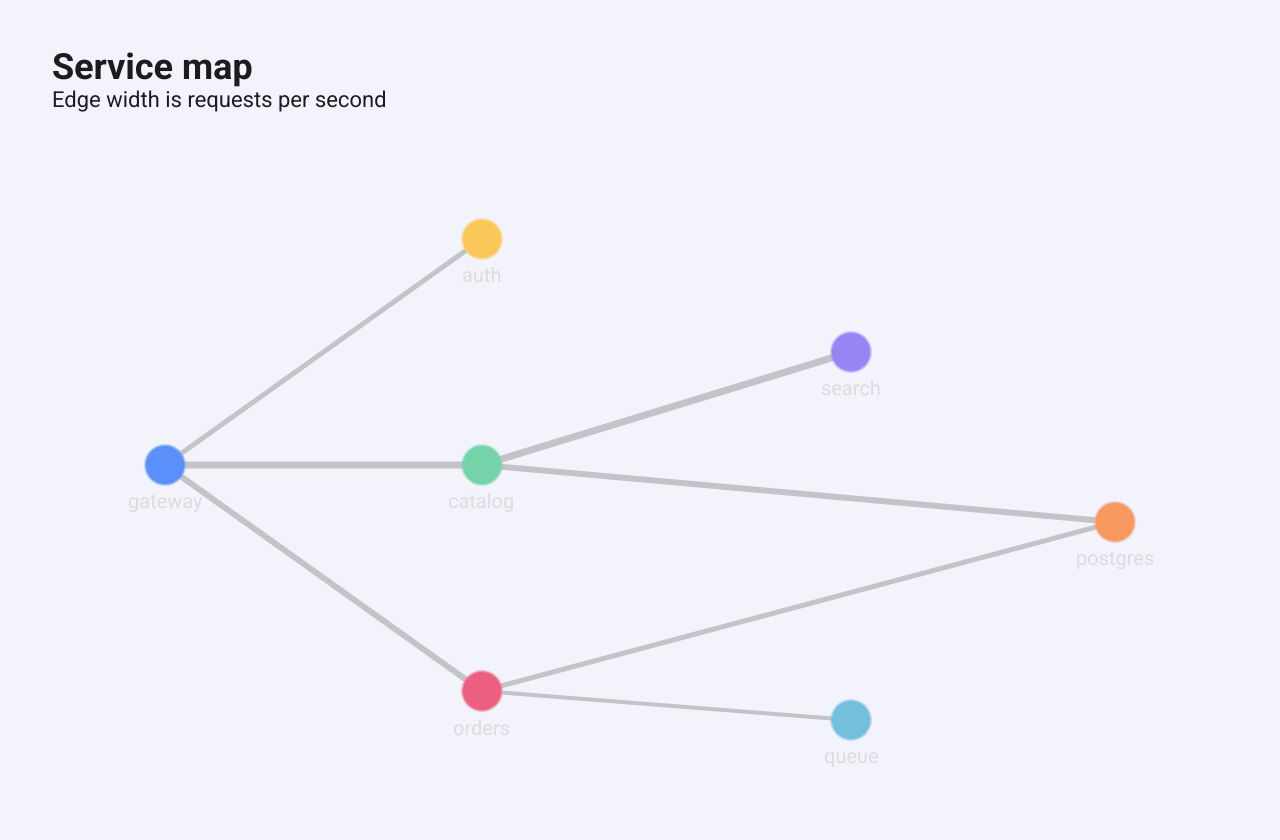

A service map: seven named nodes at fixed positions joined by edges of different widths A service map: seven named nodes at fixed positions joined by edges of different widths
c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Service map", SubText: "Edge width is requests per second"},
	Series: []series.Series{
		&series.GraphSeries{
			SeriesName: "Services",
			NodeSize:   10,
			// X and Y are fractions of the plot area, from 0 to 1.
			Nodes: []series.GraphNode{
				{Name: "gateway", X: 0.05, Y: 0.5},
				{Name: "auth", X: 0.35, Y: 0.1},
				{Name: "catalog", X: 0.35, Y: 0.5},
				{Name: "orders", X: 0.35, Y: 0.9},
				{Name: "search", X: 0.7, Y: 0.3},
				{Name: "postgres", X: 0.95, Y: 0.6},
				{Name: "queue", X: 0.7, Y: 0.95},
			},
			Edges: []series.GraphEdge{
				{Source: 0, Target: 1, Value: 2},
				{Source: 0, Target: 2, Value: 5},
				{Source: 0, Target: 3, Value: 3},
				{Source: 2, Target: 4, Value: 4},
				{Source: 2, Target: 5, Value: 3},
				{Source: 3, Target: 5, Value: 2},
				{Source: 3, Target: 6, Value: 1},
			},
		},
	},
})

The main fields:

  • Nodes lists the GraphNodes. X and Y place a node as fractions of the plot area, from 0 to 1. If every node is left at 0, 0, the nodes are arranged on a circle instead.
  • GraphNode.Value makes a node larger; NodeSize is the base radius (default 8).
  • Edges joins nodes by index. GraphEdge.Value makes an edge thicker.

Edges are plain lines without arrowheads, and there is no automatic force-directed layout.
