Line, area, bar, scatter and pie

These are the series most charts are made of. Line, bar and scatter series are drawn on the chart’s axes and can be mixed in one chart. A pie needs no axes. Every example on this page is a complete program; the parts shown are the Option passed to chart.New.

Line

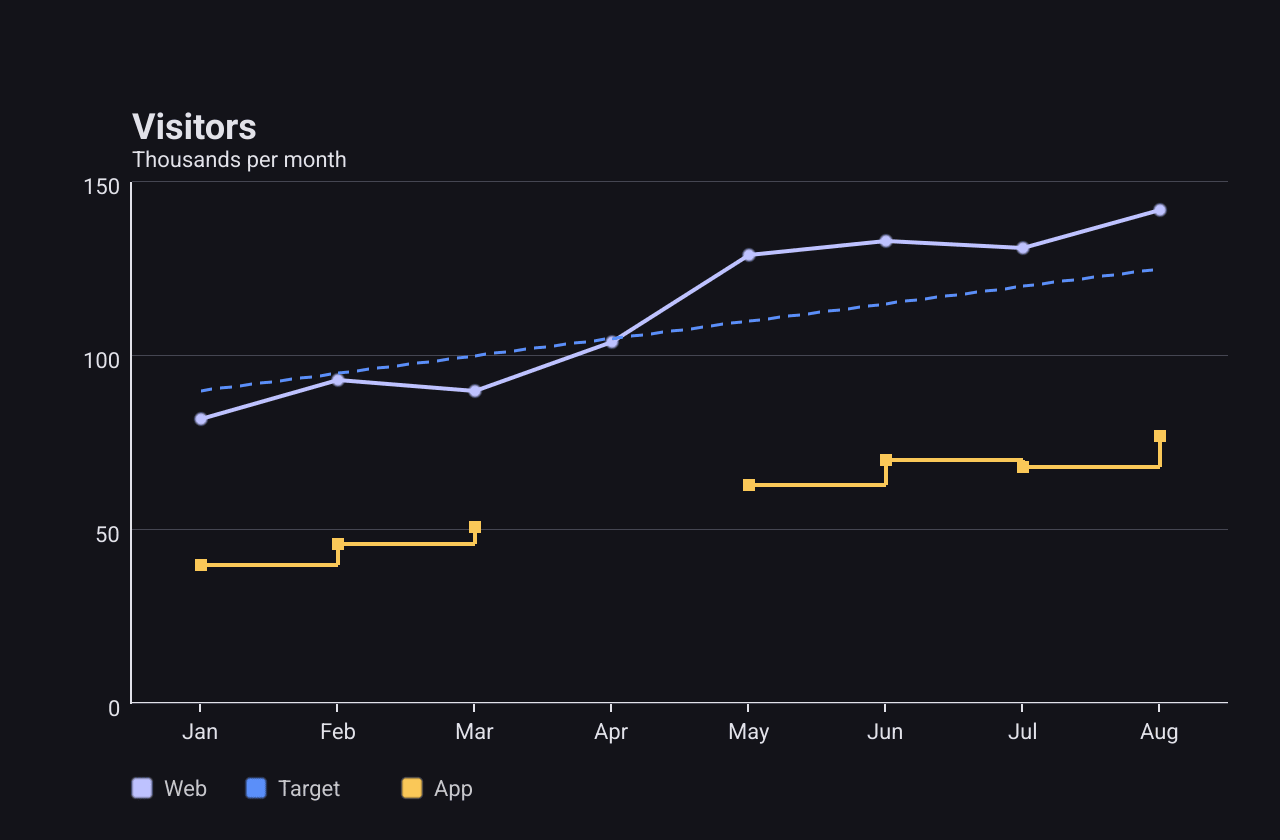

A LineSeries joins one value per category with straight segments. Use it for values that change over an ordered axis, such as time.

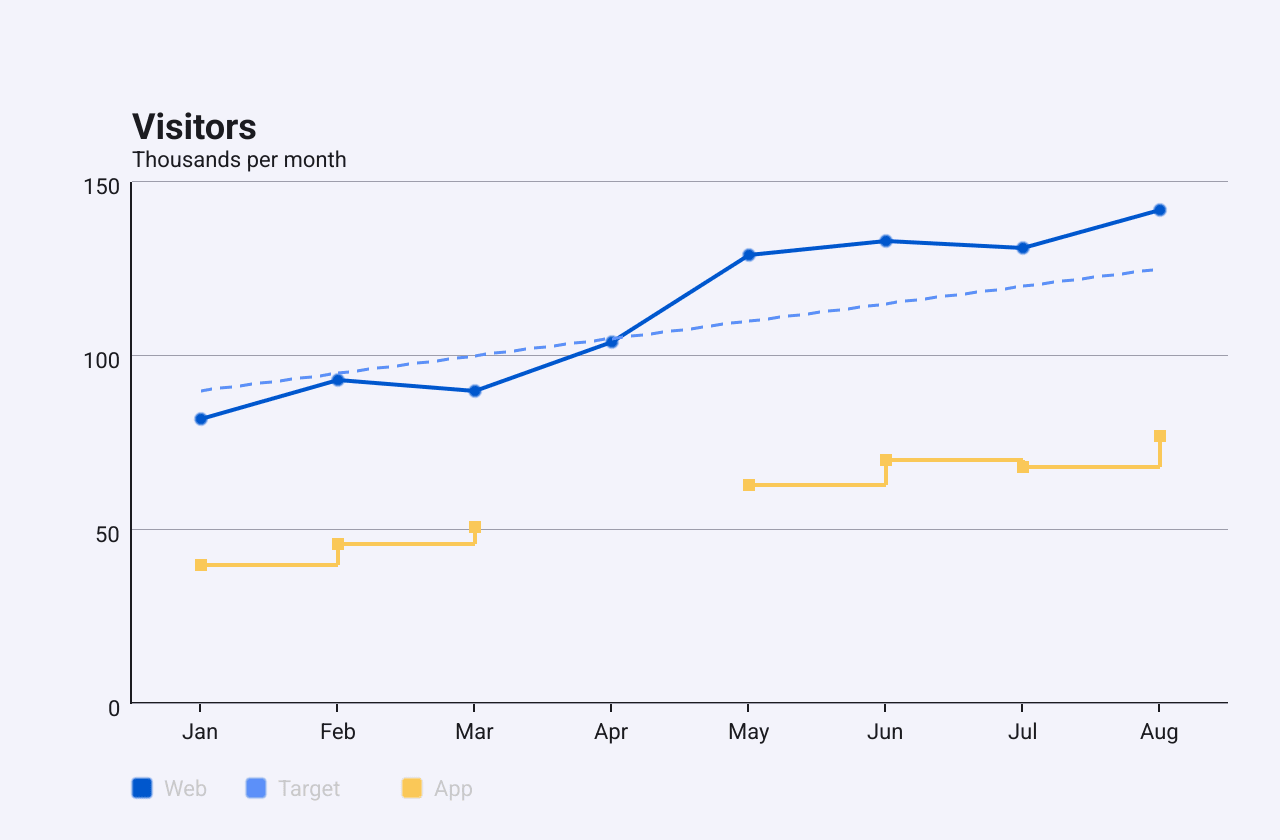

months := []string{"Jan", "Feb", "Mar", "Apr", "May", "Jun", "Jul", "Aug"}
c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Visitors", SubText: "Thousands per month"},
	XAxis: []axis.Config{{Type: axis.TypeCategory, Data: months}},
	YAxis: []axis.Config{{Type: axis.TypeValue}},
	Series: []series.Series{
		&series.LineSeries{
			SeriesName: "Web",
			Data:       []float64{82, 93, 90, 104, 129, 133, 131, 142},
			Symbol:     series.SymbolCircle,
		},
		&series.LineSeries{
			SeriesName: "Target",
			Data:       []float64{90, 95, 100, 105, 110, 115, 120, 125},
			LineStyle:  series.LineStyle{Width: 1.5, Dash: []float32{6, 4}},
		},
		&series.LineSeries{
			SeriesName: "App",
			// math.NaN() is a missing value: the line breaks there.
			Data:   []float64{40, 46, 51, math.NaN(), 63, 70, 68, 77},
			Step:   series.StepEnd,
			Symbol: series.SymbolRect,
		},
	},
})

The main fields:

Data holds one value per category. math.NaN() marks a missing value: the line breaks there. With ConnectNulls set, the gap is bridged with a dashed segment instead.
Symbol and SymbolSize put a marker on each point (default size 6). Markers are drawn only while the line has 200 points or fewer.
Step draws a staircase instead of slopes: StepStart, StepMiddle or StepEnd says where in each interval the line jumps.
LineStyle sets Color, Width (default 2) and Dash, a pattern of dash and gap lengths in pixels: {6, 4} draws 6 px dashes with 4 px gaps.
Stack stacks the line on top of other series with the same stack name.
YAxisIndex picks the Y axis when the chart has several.

A line with more points than the plot is pixels wide is downsampled before it is drawn, with the LTTB algorithm, which keeps the shape of the curve. AppendValues, or AppendData on the chart, adds points without rebuilding the option (see Live data).

In v1.0.0 Smooth has no effect: the renderer never reads it, and lines are always drawn with straight segments. SymbolTriangle and SymbolDiamond are drawn as squares, the same as SymbolRect.

Area

An area chart is a line series with an AreaStyle. The fill shows volume under the line, such as load or traffic over a day.

c := chart.New(chart.Option{
	Title: &chart.Title{Text: "CPU load", SubText: "Percent, hourly average"},
	XAxis: []axis.Config{{Type: axis.TypeCategory, Data: hours}},
	YAxis: []axis.Config{{Type: axis.TypeValue}},
	Series: []series.Series{
		&series.LineSeries{
			SeriesName: "Load",
			Data:       load,
			AreaStyle:  &series.AreaStyle{Opacity: 0.25},
		},
	},
})

AreaStyle.Opacity sets how transparent the fill is (default 0.3), and AreaStyle.Color overrides the line’s colour for the fill.

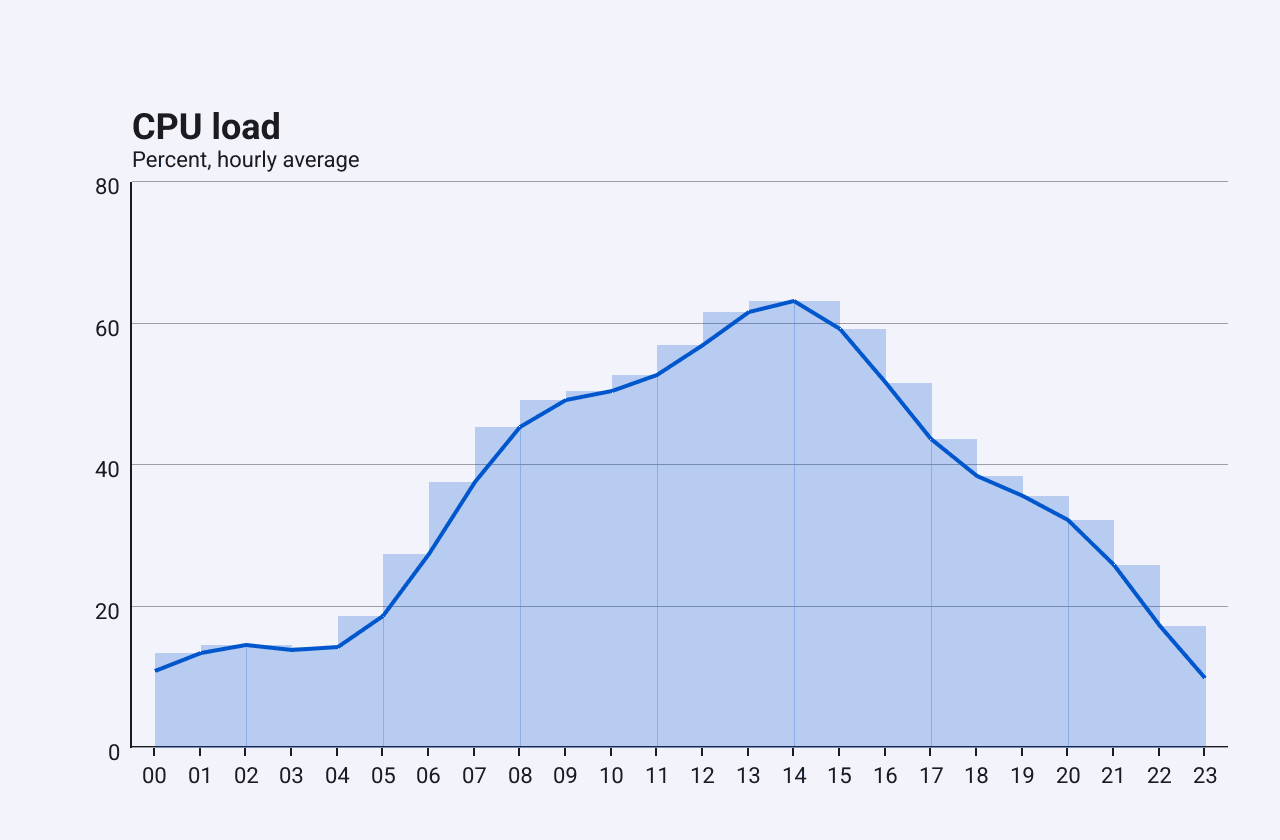

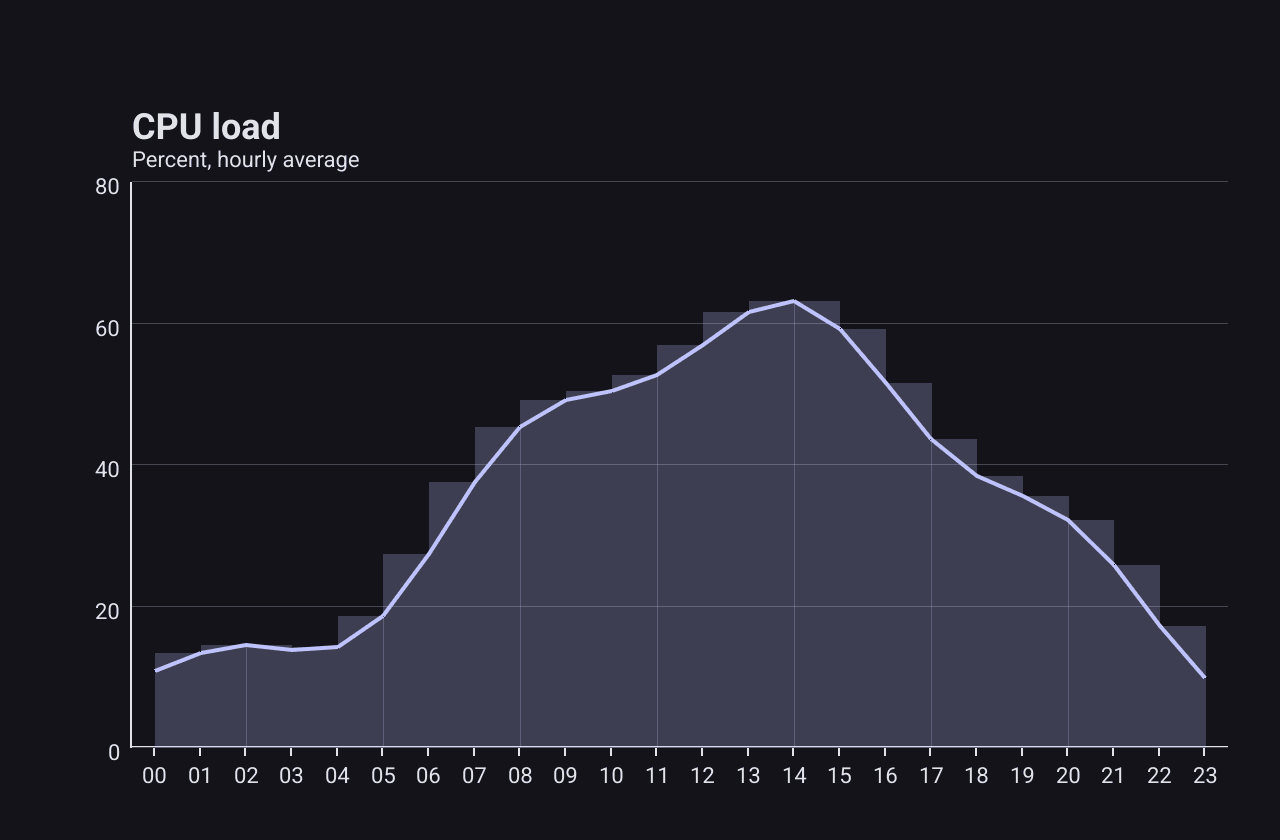

The area fill does not render correctly in v1.0.0. It is drawn as one rectangle per segment, from the higher of the segment’s two points down to the bottom of the plot. The top of the fill is therefore a staircase that pokes above the line wherever the line slopes, as the screenshot shows. The fill always reaches the bottom of the plot rather than zero, so stacked areas overlap each other instead of sitting on top of one another. Stacked lines without a fill are drawn correctly.

Bar

A BarSeries draws one bar per category. Use it to compare amounts between categories.

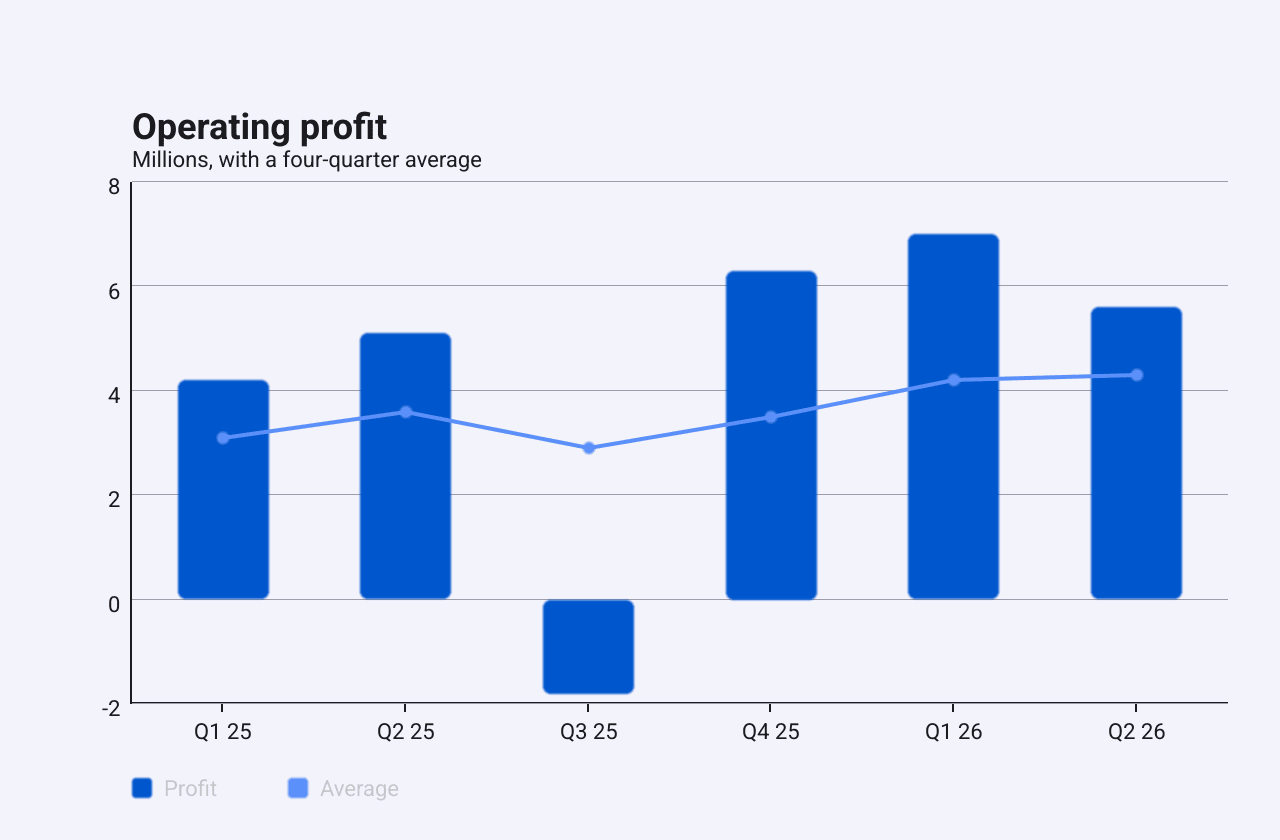

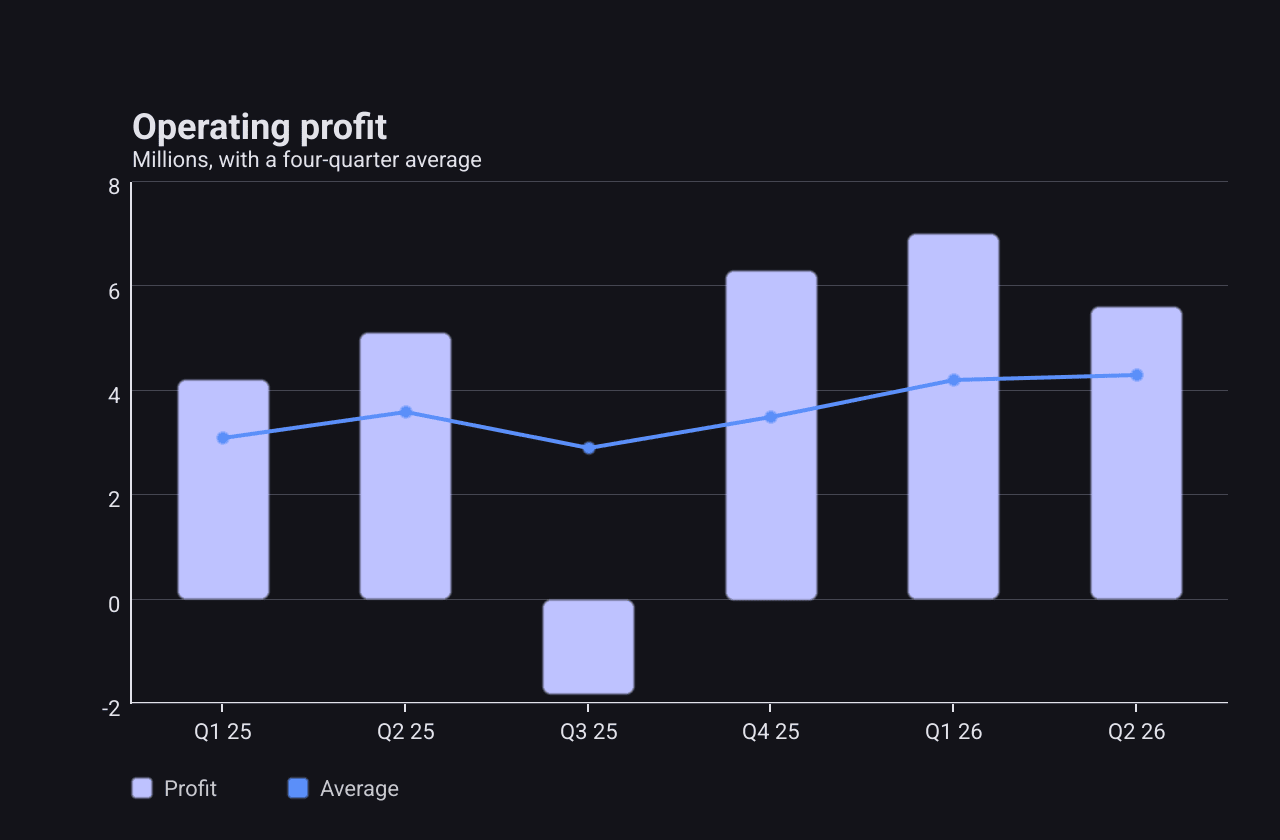

A bar chart of quarterly profit with one negative quarter, and an average line drawn over the bars

quarters := []string{"Q1 25", "Q2 25", "Q3 25", "Q4 25", "Q1 26", "Q2 26"}
c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Operating profit", SubText: "Millions, with a four-quarter average"},
	XAxis: []axis.Config{{Type: axis.TypeCategory, Data: quarters}},
	YAxis: []axis.Config{{Type: axis.TypeValue}},
	Series: []series.Series{
		&series.BarSeries{
			SeriesName:   "Profit",
			Data:         []float64{4.2, 5.1, -1.8, 6.3, 7.0, 5.6},
			BarWidth:     0.5,
			CornerRadius: 4,
		},
		&series.LineSeries{
			SeriesName: "Average",
			Data:       []float64{3.1, 3.6, 2.9, 3.5, 4.2, 4.3},
			Symbol:     series.SymbolCircle,
		},
	},
})

The main fields:

Data holds one value per category. Negative values grow down from zero.
BarWidth is the bar’s width as a fraction of the space per category (default 0.6).
CornerRadius rounds the corners. BorderColor and BorderWidth add an outline. Color overrides the palette colour.
Stack stacks bars with the same stack name, as in the stacked example.

AppendValues adds bars in place, like the line series.

v1.0.0 has no grouped bars. Two bar series in one chart without a common Stack are drawn at the same position, so the later one covers the earlier one. BarGap is declared but has no effect.

Scatter

A ScatterSeries places a marker at each x, y pair. Use it to show how two measures relate. Both axes are usually value axes.

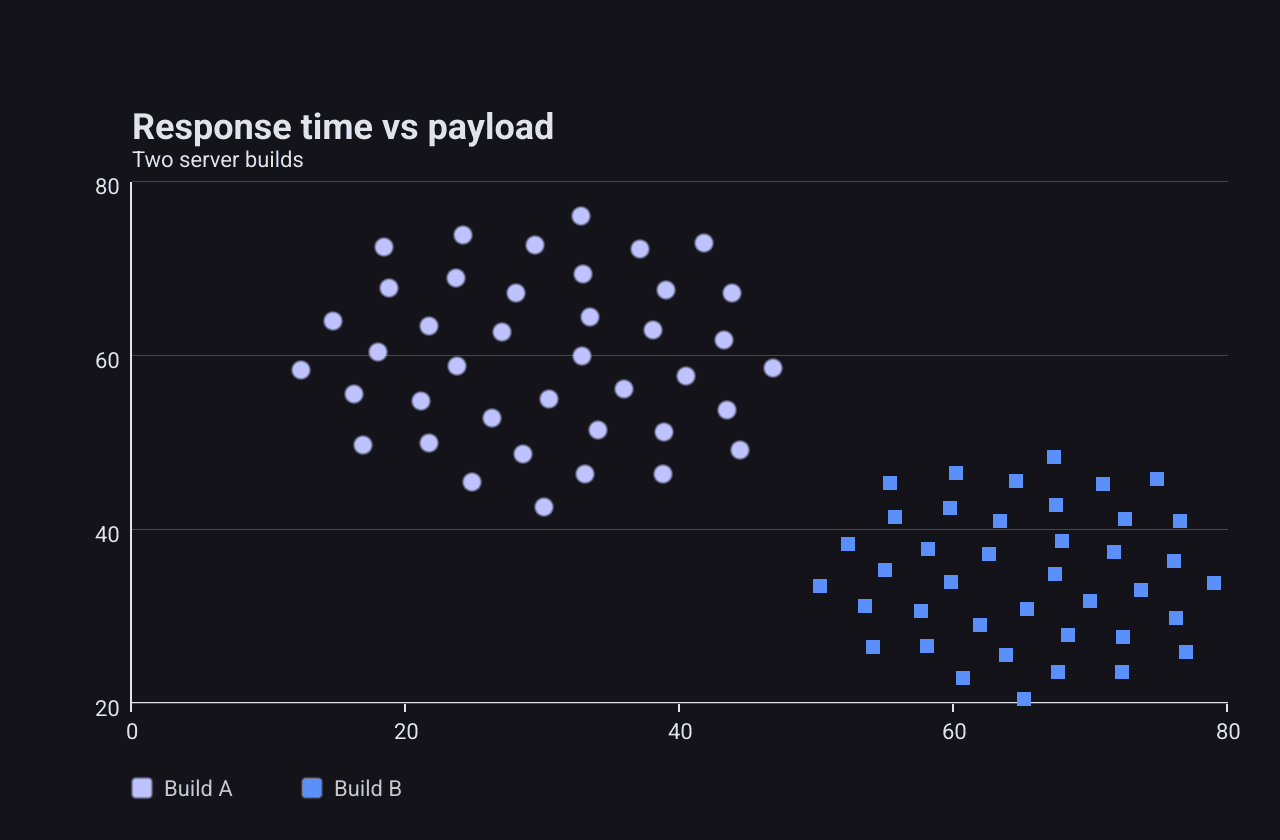

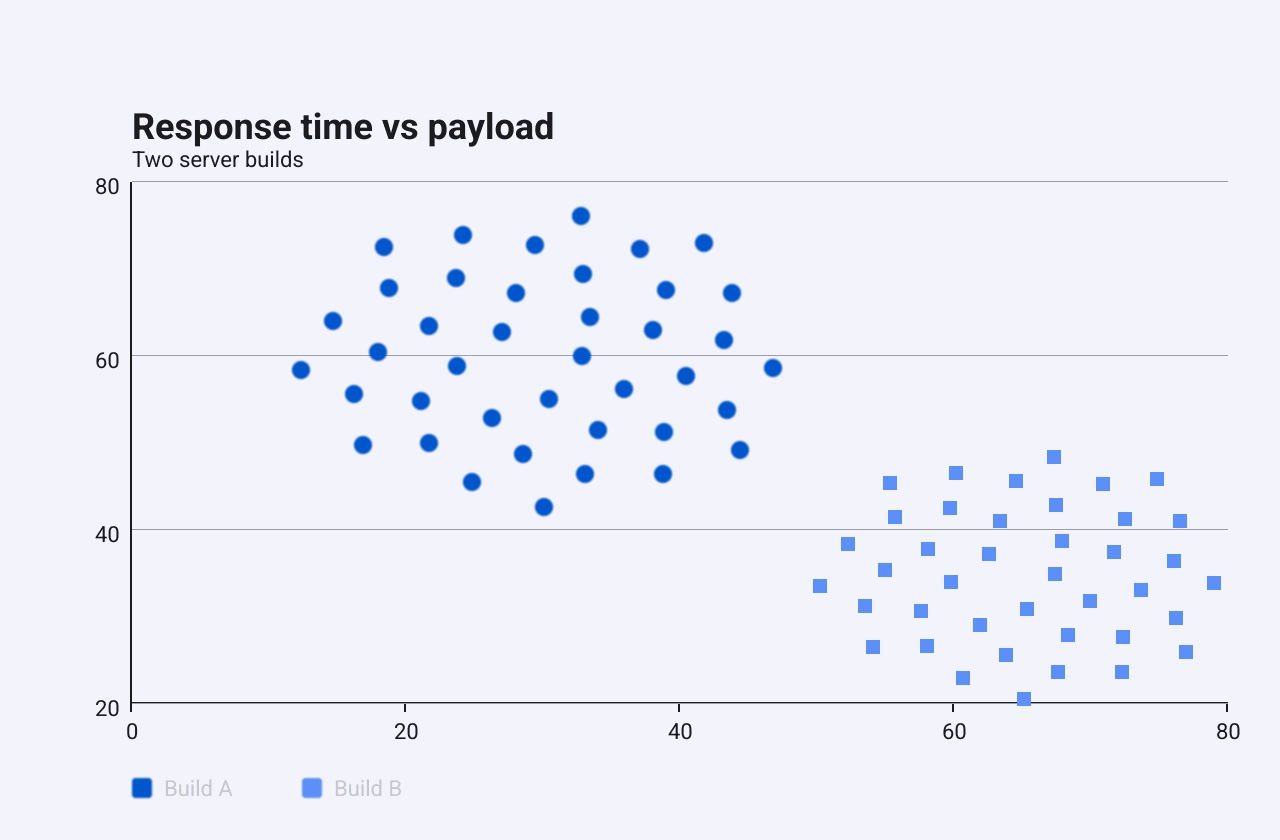

c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Response time vs payload", SubText: "Two server builds"},
	XAxis: []axis.Config{{Type: axis.TypeValue}},
	YAxis: []axis.Config{{Type: axis.TypeValue}},
	Series: []series.Series{
		&series.ScatterSeries{
			SeriesName: "Build A",
			Data:       cluster(40, 30, 60, 18), // x0, y0, x1, y1, ...
			Symbol:     series.SymbolCircle,
			SymbolSize: 9,
		},
		&series.ScatterSeries{
			SeriesName: "Build B",
			Data:       cluster(40, 65, 35, 15),
			Symbol:     series.SymbolRect,
			SymbolSize: 7,
		},
	},
})

Data stores the pairs flat: [x0, y0, x1, y1, ...]. Symbol chooses the marker shape, SymbolSize its size (default 8), and Color overrides the palette. AppendValues takes further pairs in the same flat form.

Pie

A PieSeries shows how a whole divides into parts. It ignores the axes and is drawn in the middle of the plot area.

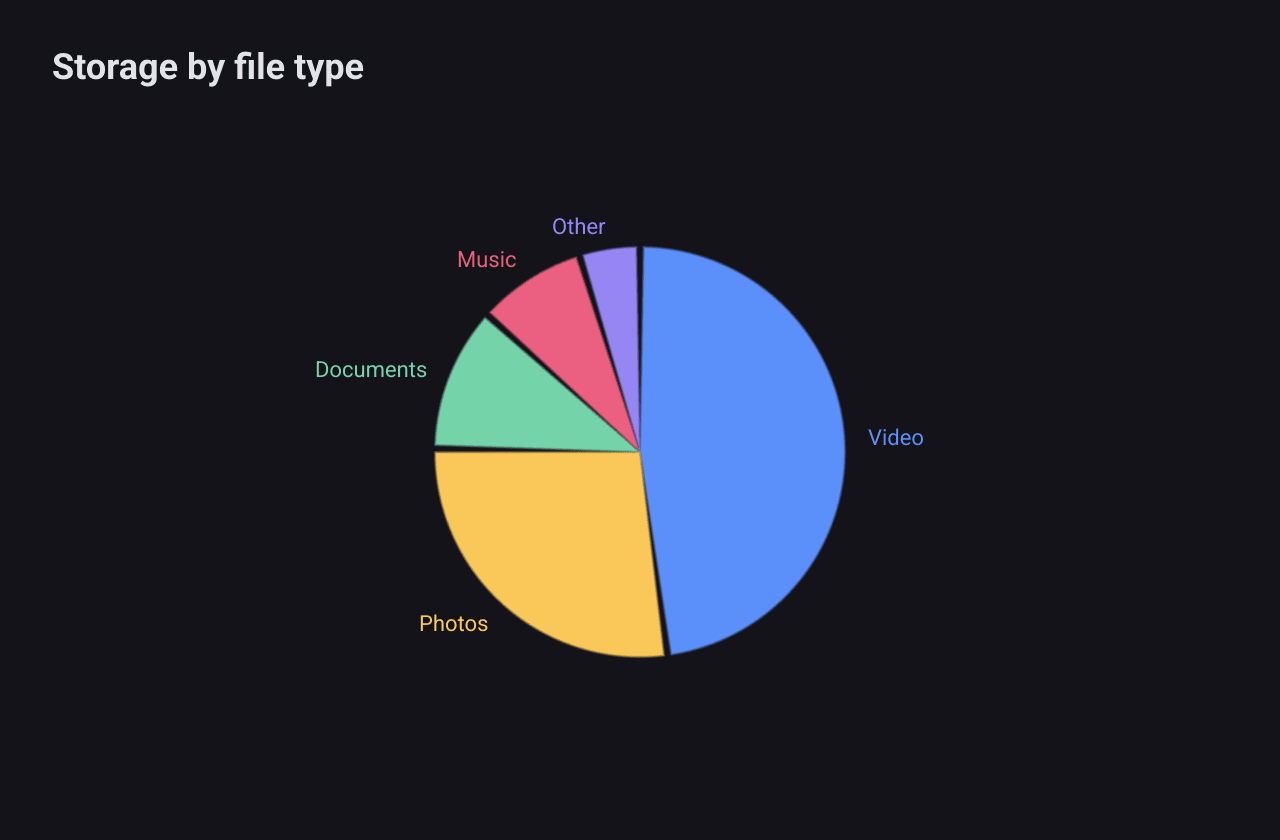

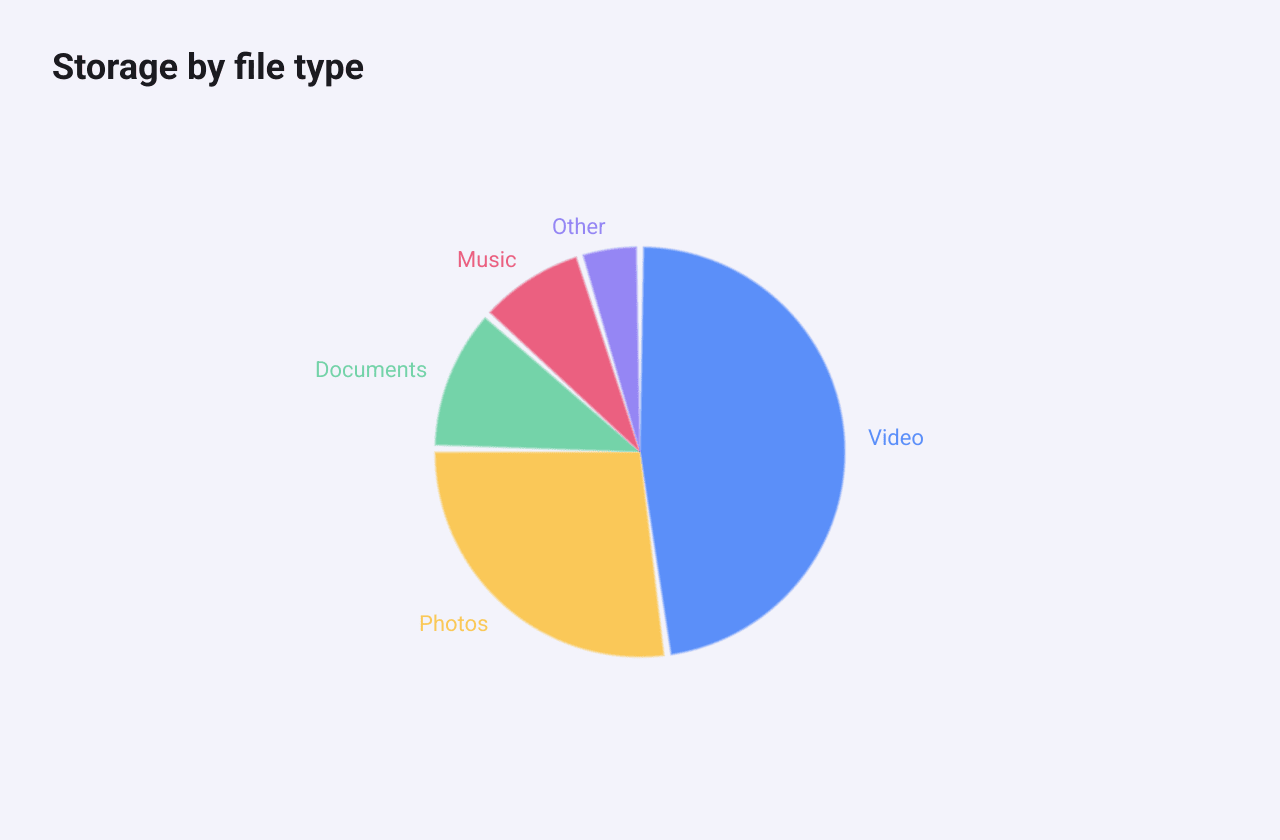

A pie chart of storage by file type with five slices, small gaps between them, and a label next to each

c := chart.New(chart.Option{
	Title: &chart.Title{Text: "Storage by file type"},
	Series: []series.Series{
		&series.PieSeries{
			SeriesName: "Storage",
			Radius:     0.8,
			PadAngle:   2, // degrees of space between slices
			ShowLabels: true,
			Data: []series.PieDataItem{
				{Name: "Video", Value: 412},
				{Name: "Photos", Value: 236},
				{Name: "Documents", Value: 98},
				{Name: "Music", Value: 74},
				{Name: "Other", Value: 41},
			},
		},
	},
})

The main fields:

Data is a list of PieDataItem: a Name, a Value and an optional Color for that slice.
Radius is a fraction of the available space (default 0.75).
InnerRadius is a fraction of Radius. Any value above 0 cuts a hole in the middle and makes a doughnut.
StartAngle is where the first slice starts, in degrees, with 0 at the top. Slices go clockwise.
PadAngle leaves a gap of that many degrees between slices.
ShowLabels writes each slice’s name outside it, in the slice’s colour.

Slices take their colours from a fixed built-in palette, not from Option.Color. Set PieDataItem.Color to choose them.
